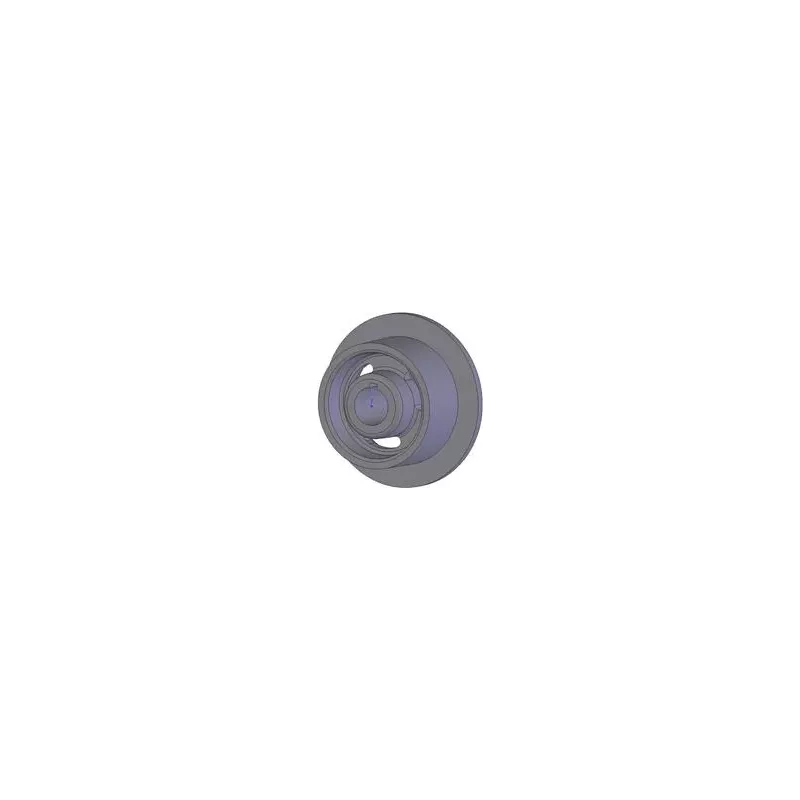

Roller no. 88 – return roller Ø118 mm for Anna Z644 potato harvester
deflection roller
| Part number KIJ | Original reference number | |
|---|---|---|
| 118-052-160-035-000 (numer-88) | 5644-51-009 |
Add to Quote
|
| track diam. - track width - collar diam. - hole diam. - screw diam. | ||
Roller no. 88 is a return roller with a tread diameter of 118 mm, made by KiJ to fit the Anna Z644 potato harvester, OEM no. 5644-51-009. It runs at the turning point of the conveyor web, reversing its direction of travel.
Technical specifications
| Part manufacturer | KiJ |
| Machine make | Anna |
| Machine model | Z644 |
| Part type | return roller |
| Tread diameter | 118 mm |
| Tread width | 52 mm |
| Flange diameter | 160 mm |
| Bore diameter | 35 mm |
Identification numbers
| KiJ numbers / variants | 118-052-160-035-000 (numer-88) |
| OEM reference numbers (Anna) | 5644-51-009 |
Application
- Anna Z644 – potato harvester
How to choose the right roller
Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.
deflection roller
The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
