Offer

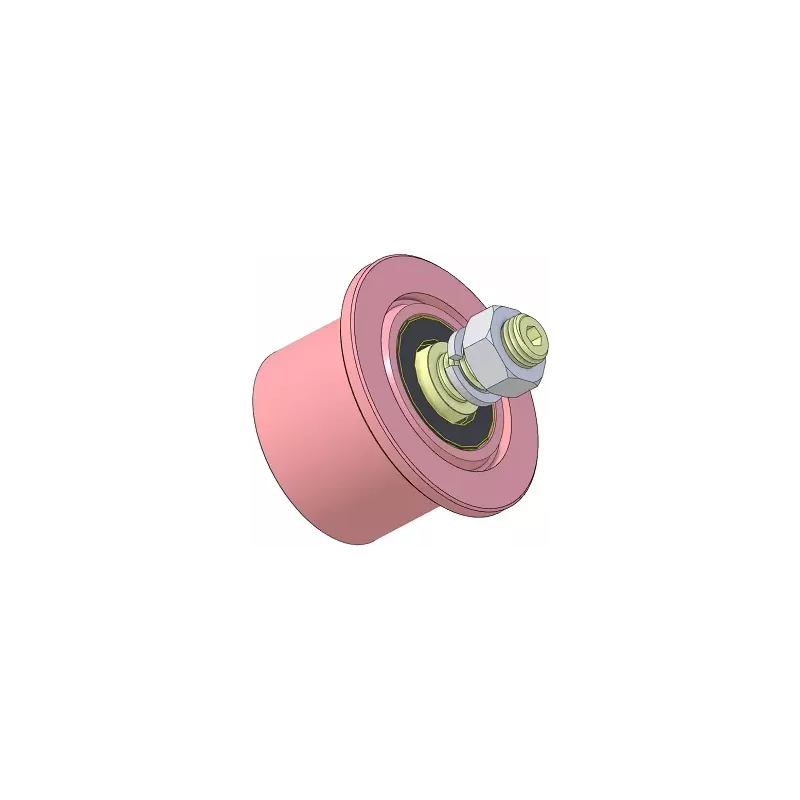

Roller no. 323 – steel return roller Ø80 mm for Sandei machines
deflection roller | steel
| Part number KIJ | Original reference number | |
|---|---|---|
| 080-055-105-000-M20 (numer-323) | D0020 |
Add to Quote
|

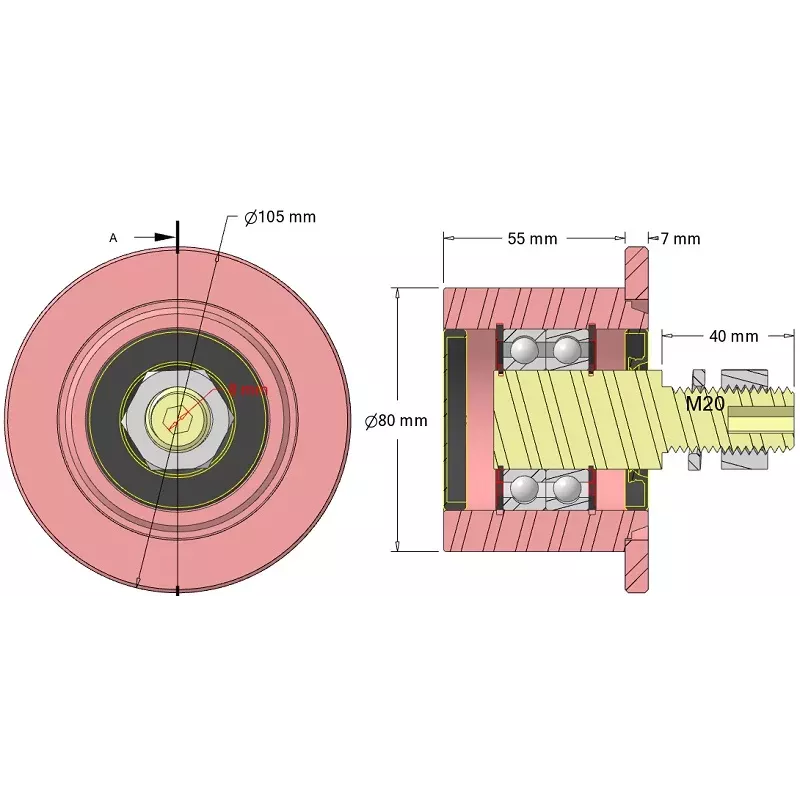

| track diam. - track width - collar diam. - hole diam. - screw diam. | ||
Roller no. 323 is a steel return roller with a tread diameter of 80 mm, made by KiJ to fit Sandei machines, OEM no. D0020. It runs at the turning point of the conveyor web, reversing its direction of travel.
Technical specifications
| Part manufacturer | KiJ |
| Machine make | Sandei |
| Machine model | TH 500 |
| Part type | return roller |
| Material | steel |
| Tread diameter | 80 mm |
| Tread width | 55 mm |
| Flange diameter | 105 mm |
| Threaded axle | M20 |
Identification numbers
| KiJ numbers / variants | 080-055-105-000-M20 (numer-323) |
| OEM reference numbers (Sandei) | D0020 |
Application
- Sandei TH 500 (according to the KiJ machine catalogue)
How to choose the right roller
Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.
deflection roller | steel
The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
