Offer
Roller no. 227 – cast iron roller hub for Grimme machines
split roller hub to the roll | cast iron
| Part number KIJ | Original reference number | |
|---|---|---|
| 000-062-120-040-000 (numer-227) | 003.00022 |
Add to Quote
|
| track diam. - track width - collar diam. - hole diam. - screw diam. | ||

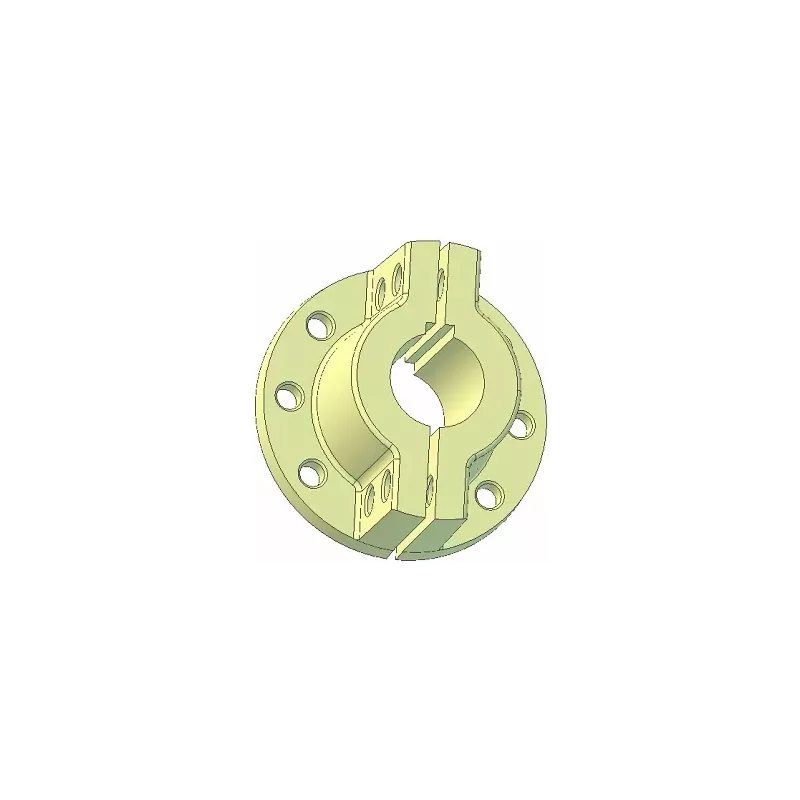

Roller no. 227 is a cast iron roller hub made by KiJ to fit Grimme machines, OEM no. 003.00022.

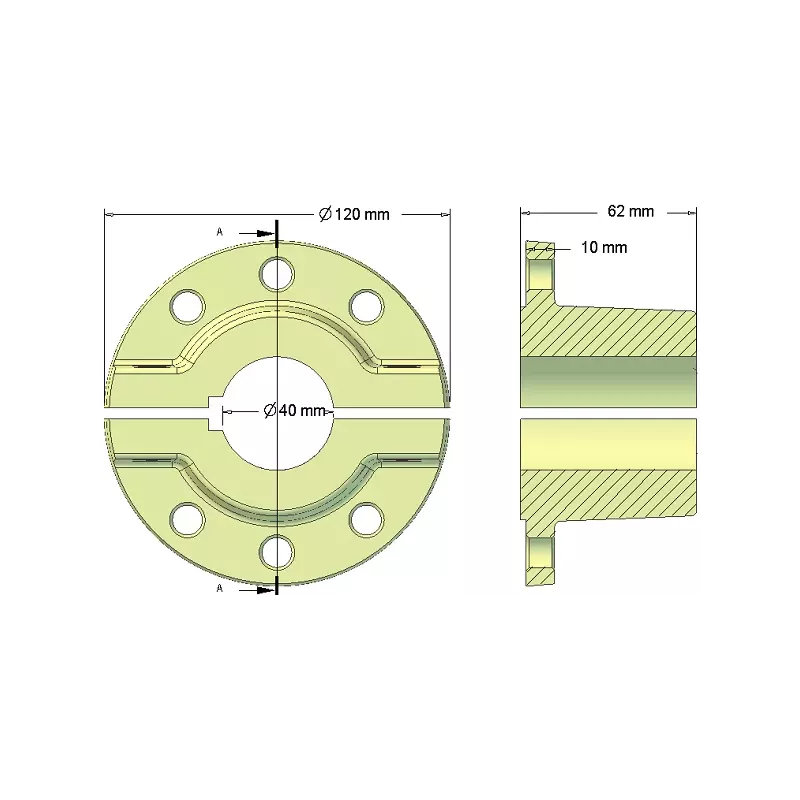

Technical specifications
| Part manufacturer | KiJ |
| Machine make | Grimme |
| Machine model | |
| Part type | roller hub |
| Material | cast iron |
| Width | 62 mm |
| Flange diameter | 120 mm |
| Bore diameter | 40 mm |
Identification numbers
| KiJ numbers / variants | 000-062-120-040-000 (numer-227) |
| OEM reference numbers (Grimme) | 003.00022 |
Application
- Grimme machines – match by OEM no. 003.00022
How to choose the right part
Check the OEM number in the machine's parts catalogue or measure the part using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.
Other parts
split roller hub to the roll | cast iron
The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
