Roller no. 174 – cast iron gear wheel Ø210 mm
gear | cast iron
| Part number KIJ | Original reference number | |
|---|---|---|
| 210-055-000-030-000 (numer-174) | 035068 |
Add to Quote
|
| track diam. - track width - collar diam. - hole diam. - screw diam. | ||

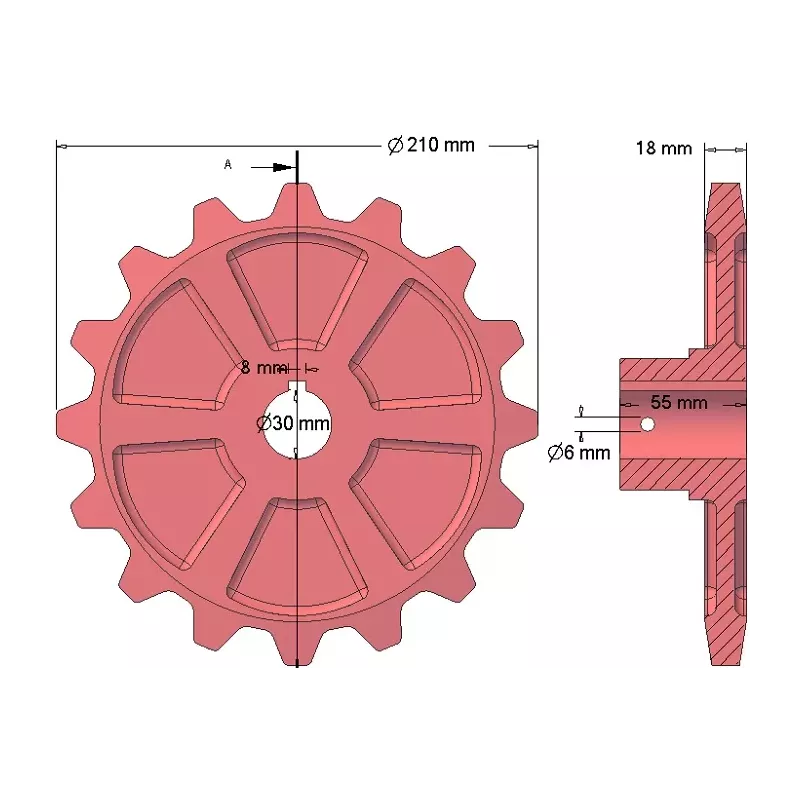

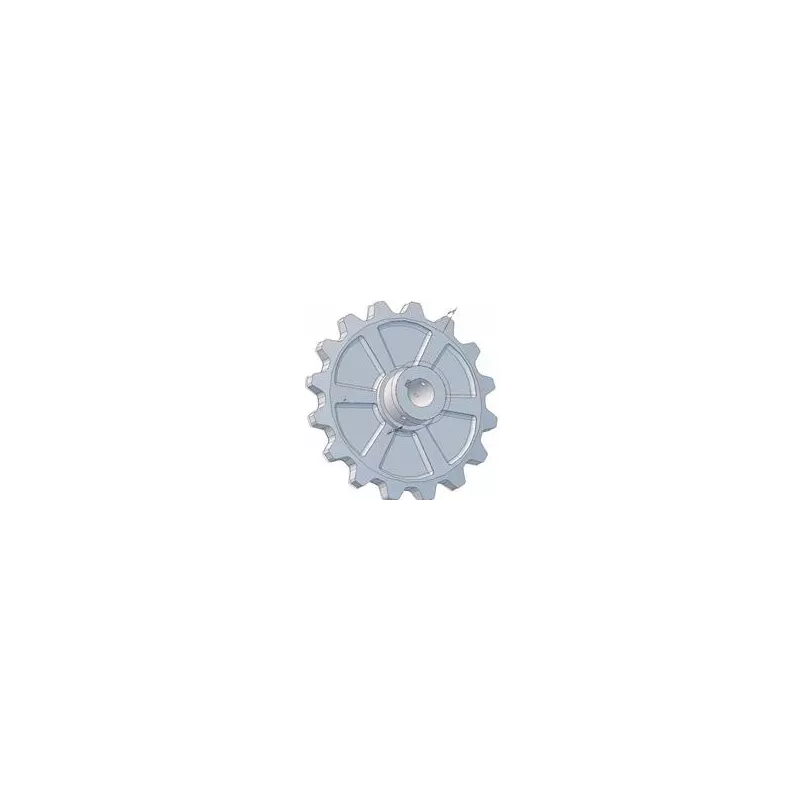

Roller no. 174 is a cast iron gear wheel with a diameter of 210 mm, made by KiJ, OEM no. 035068.
Technical specifications
| Part manufacturer | KiJ |
| Machine make | |
| Machine model | |
| Part type | gear wheel |
| Material | cast iron |
| Outer diameter | 210 mm |
| Width | 55 mm |
| Bore diameter | 30 mm |
Identification numbers
| KiJ numbers / variants | 210-055-000-030-000 (numer-174) |
| OEM reference numbers | 035068 |
Application
Confirm the fit to your machine using OEM no. 035068.
How to choose the right part
Check the OEM number in the machine's parts catalogue or measure the part using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.
gear | cast iron
The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
