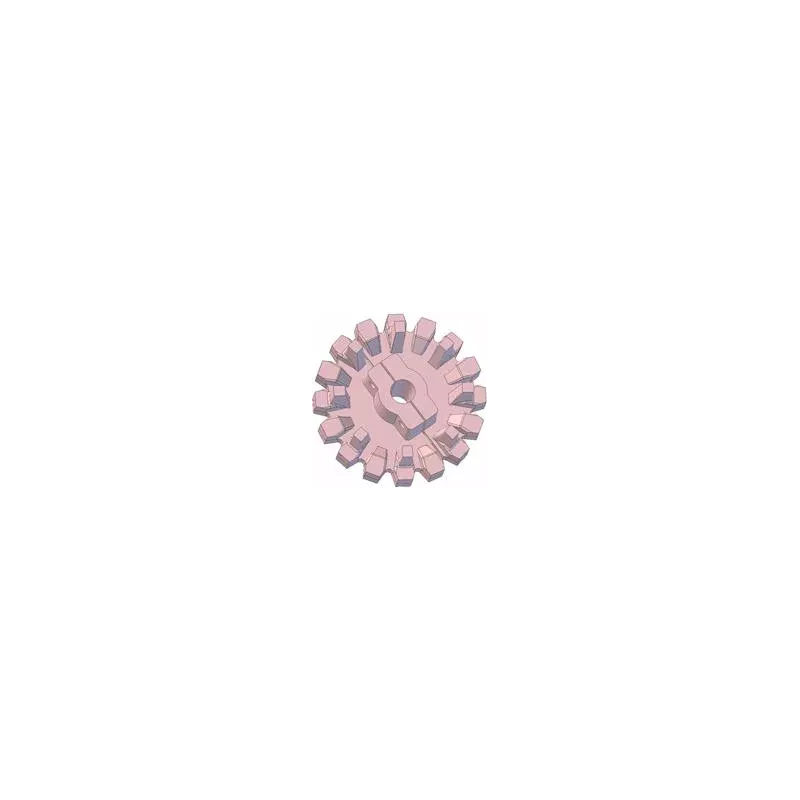

Roller no. 205 – cast iron drive roller Ø208 mm, pitch 36 mm, for Wuhlmaus machines

finger roller | cast iron | pitch 36 mm

Part number KIJ Original reference number
208-030-000-030-000 (numer-205)

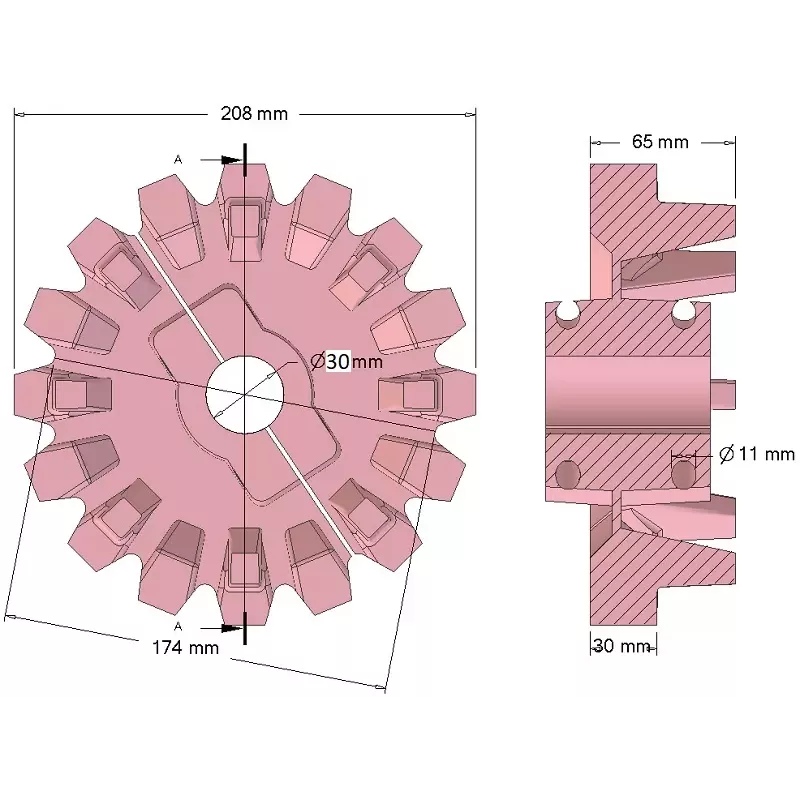

track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 205 is a cast iron drive roller with a tread diameter of 208 mm and a pitch of 36 mm, made by KiJ and used in Wuhlmaus machines. It drives the conveyor web, transmitting drive from the shaft to the web.

Technical specifications

Part manufacturerKiJ
Machine makeWuhlmaus
Machine model
Part typedrive roller
Materialcast iron
Pitch36 mm
Tread diameter208 mm
Tread width30 mm
Bore diameter30 mm

Identification numbers

KiJ numbers / variants208-030-000-030-000 (numer-202)
OEM reference numbers (Wuhlmaus)

Application

  • Wuhlmaus machines

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
