Roller no. 86 – steel return roller Ø90 mm for Anna Z644 potato harvester

deflection roller | steel

Part number KIJ Original reference number
090-068-125-000-M20 (numer-86) 564421015

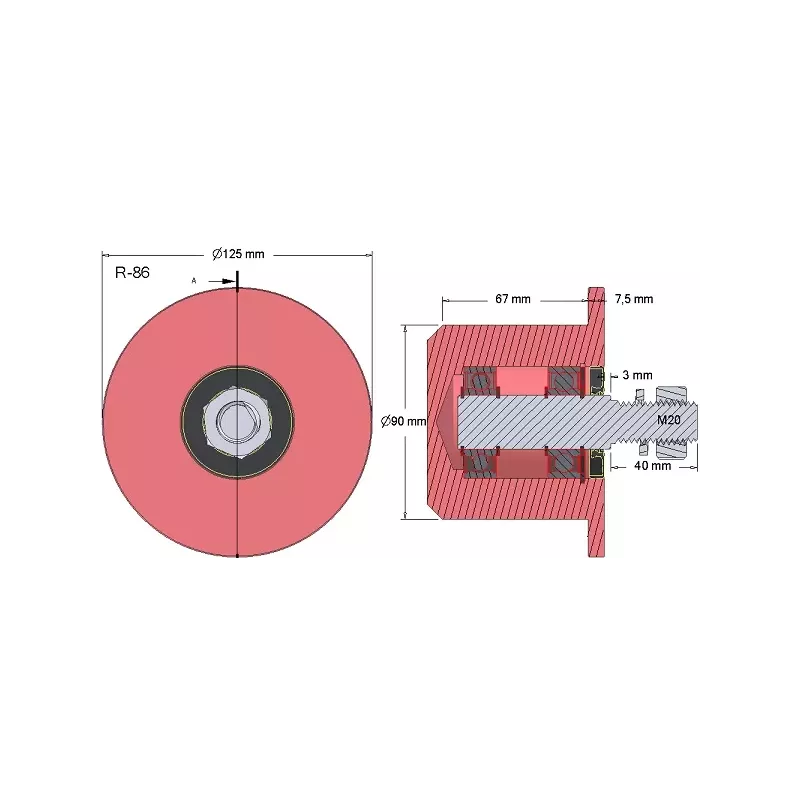

track diam. - track width - collar diam. - hole diam. - screw diam.

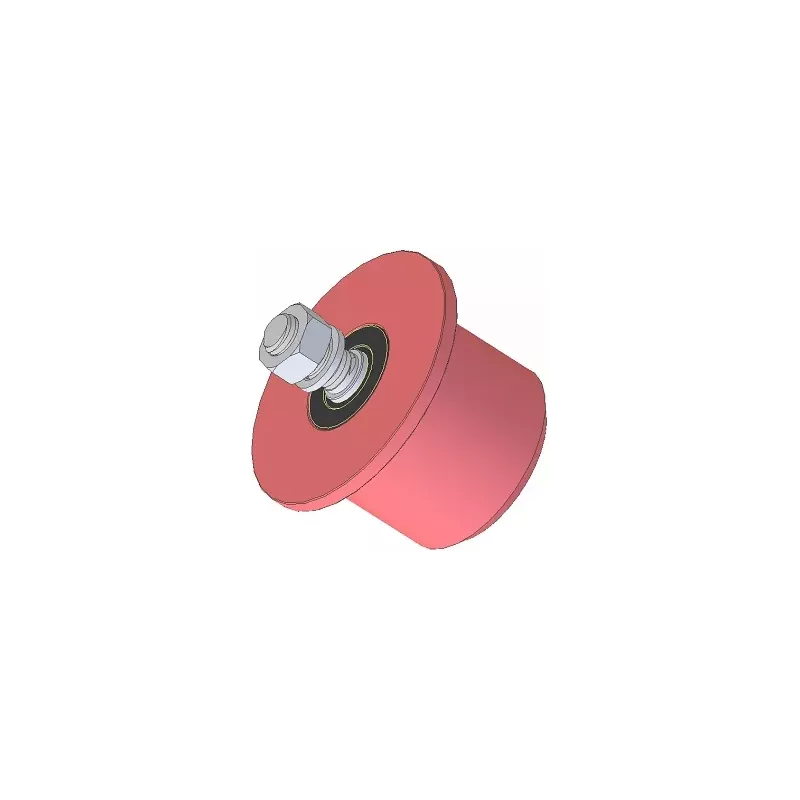

Roller no. 86 is a steel return roller with a tread diameter of 90 mm, made by KiJ to fit the Anna Z644 potato harvester, OEM no. 564421015. It runs at the turning point of the conveyor web, reversing its direction of travel. Listed in parts catalogues as a sieve web return roller.

Technical specifications

Part manufacturerKiJ
Machine makeAnna
Machine modelZ644
Part typereturn roller
Materialsteel
Tread diameter90 mm
Tread width68 mm
Flange diameter125 mm
Threaded axleM20

Identification numbers

KiJ numbers / variants090-068-125-000-M20 (numer-86)
OEM reference numbers (Anna)564421015

Application

  • Anna Z644 – potato harvester

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
