Roller no. 319 – steel support roller Ø110 mm for Wuhlmaus machines
support roller | steel
| Part number KIJ | Original reference number | |
|---|---|---|
| 110-080-130-000-M20 (numer-319) |
Add to Quote
|
|
| track diam. - track width - collar diam. - hole diam. - screw diam. | ||

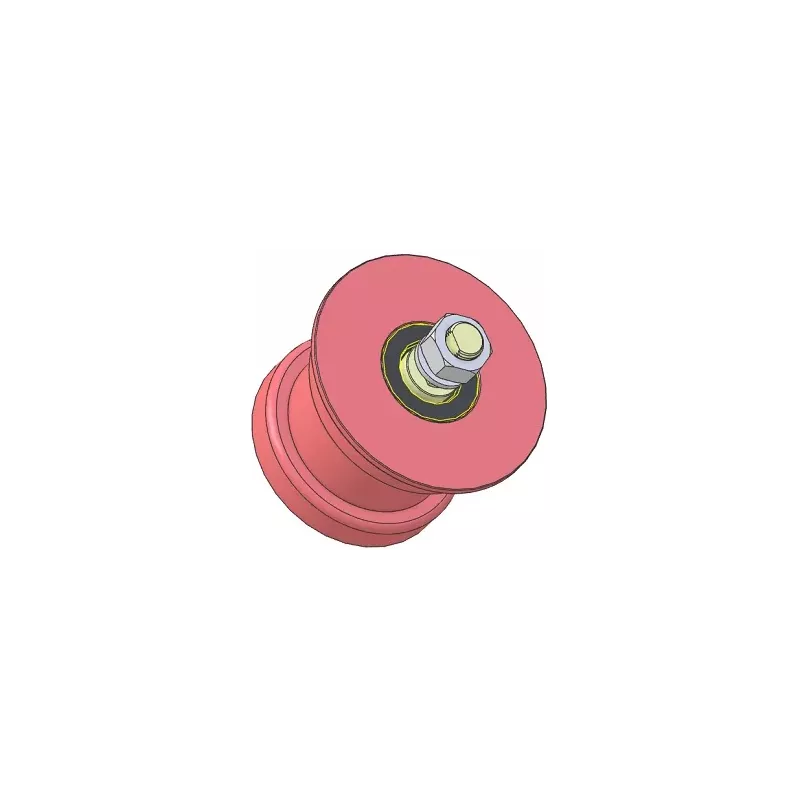

Roller no. 319 is a steel support roller with a tread diameter of 110 mm, made by KiJ and used in Wuhlmaus machines. It supports the conveyor web and keeps it running on the correct track.
Technical specifications
| Part manufacturer | KiJ |
| Machine make | Wuhlmaus |
| Machine model | |
| Part type | support roller |
| Material | steel |
| Tread diameter | 110 mm |
| Tread width | 80 mm |
| Flange diameter | 130 mm |
| Threaded axle | M20 |
Identification numbers
| KiJ numbers / variants | 110-080-130-000-M20 (numer-319) |
| OEM reference numbers (Wuhlmaus) |
Application
- Wuhlmaus machines
How to choose the right roller
Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.
support roller | steel
The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
