Roller no. 144 – cast iron return roller Ø110 mm
deflection roller | cast iron
| Part number KIJ | Original reference number | |
|---|---|---|
| 110-050-150-000-M16 (numer-144) | 6.33.00-2 |
Add to Quote
|

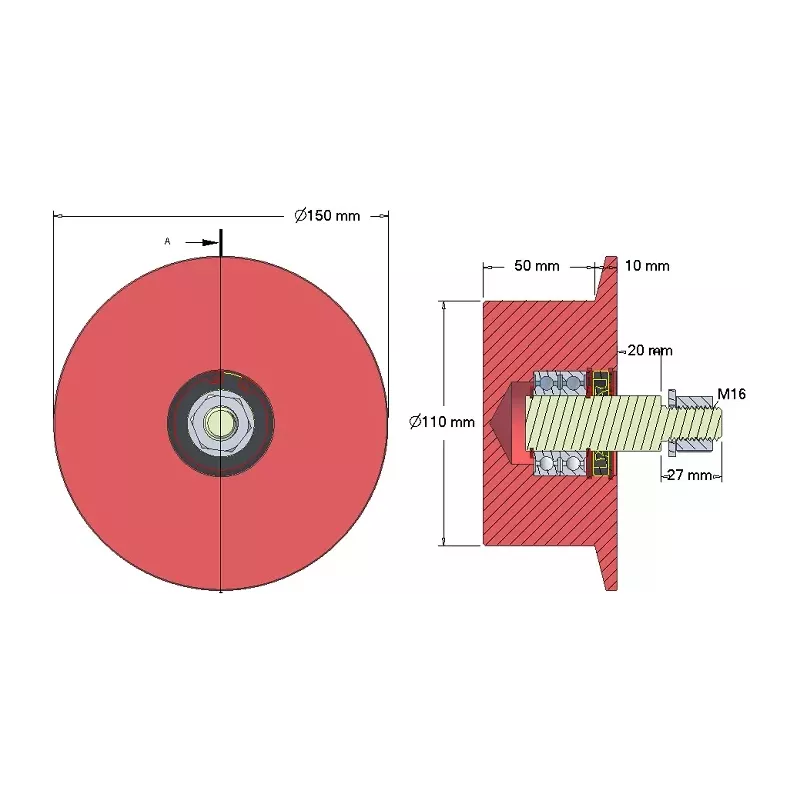

| track diam. - track width - collar diam. - hole diam. - screw diam. | ||

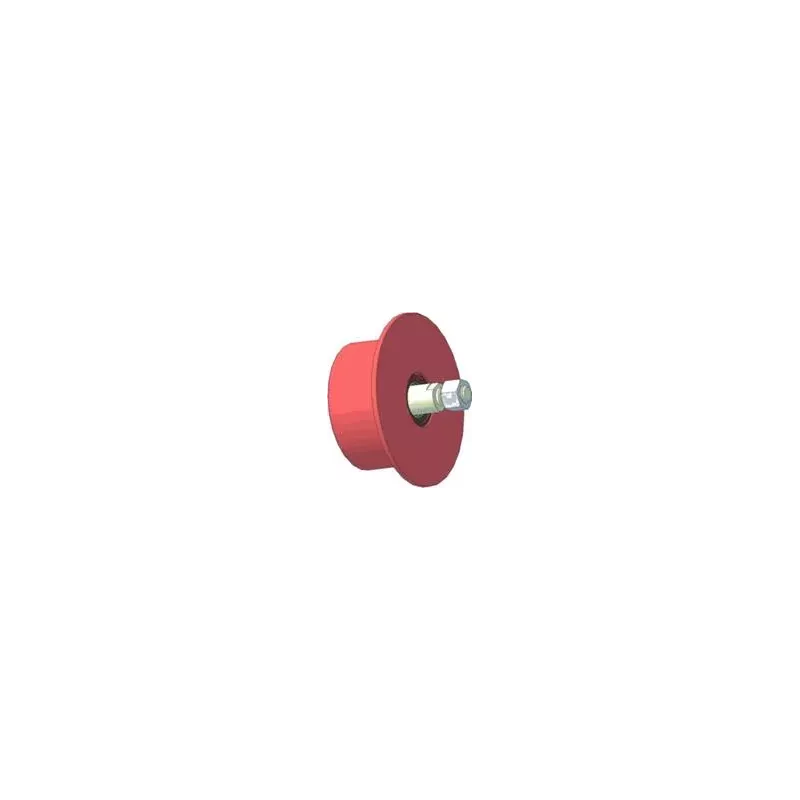

Roller no. 144 is a cast iron return roller with a tread diameter of 110 mm, made by KiJ, OEM no. 6.33.00-2. It runs at the turning point of the conveyor web, reversing its direction of travel.
Technical specifications
| Part manufacturer | KiJ |
| Machine make | |
| Machine model | |
| Part type | return roller |
| Material | cast iron |
| Tread diameter | 110 mm |
| Tread width | 50 mm |
| Flange diameter | 150 mm |
| Threaded axle | M16 |
Identification numbers
| KiJ numbers / variants | 110-050-150-000-M16 (numer-144) |
| OEM reference numbers | 6.33.00-2 |
Application
Confirm the fit to your machine using OEM no. 6.33.00-2.
How to choose the right roller
Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.
deflection roller | cast iron
The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
