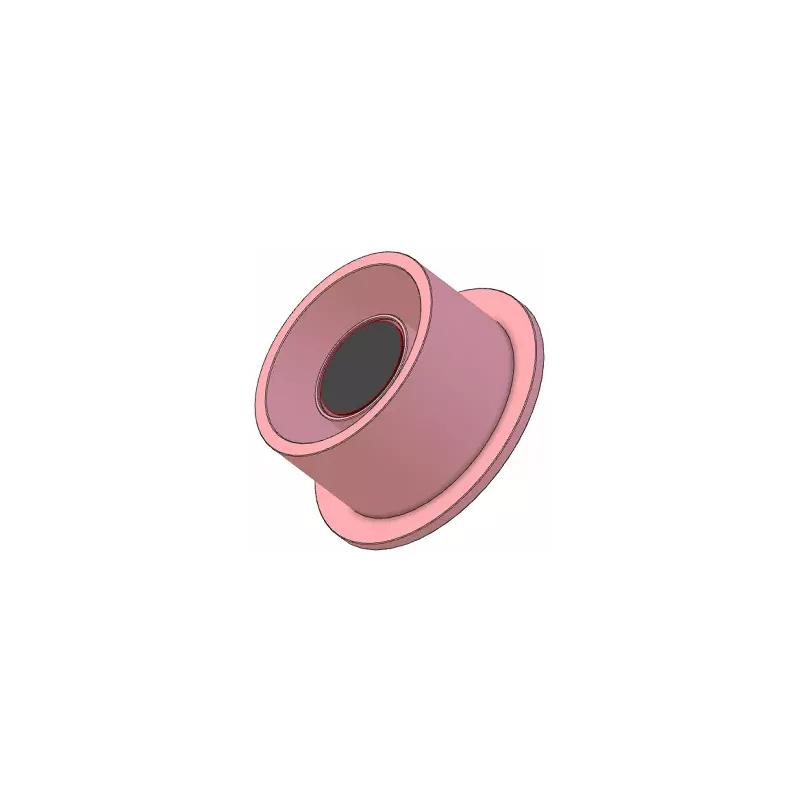

Roller no. 193 – steel return roller Ø135 mm for Grimme machines

deflection roller | steel

Part number KIJ Original reference number
135-069-165-017-000 (numer-193) 088.00486
track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 193 is a steel return roller with a tread diameter of 135 mm, made by KiJ to fit Grimme machines, OEM no. 088.00486. It runs at the turning point of the conveyor web, reversing its direction of travel.

Technical specifications

Part manufacturerKiJ
Machine makeGrimme
Machine model
Part typereturn roller
Materialsteel
Tread diameter135 mm
Tread width69 mm
Flange diameter165 mm
Bore diameter17 mm

Identification numbers

KiJ numbers / variants135-069-165-017-000 (numer-193)
OEM reference numbers (Grimme)088.00486

Application

  • Grimme machines – match by OEM no. 088.00486

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
