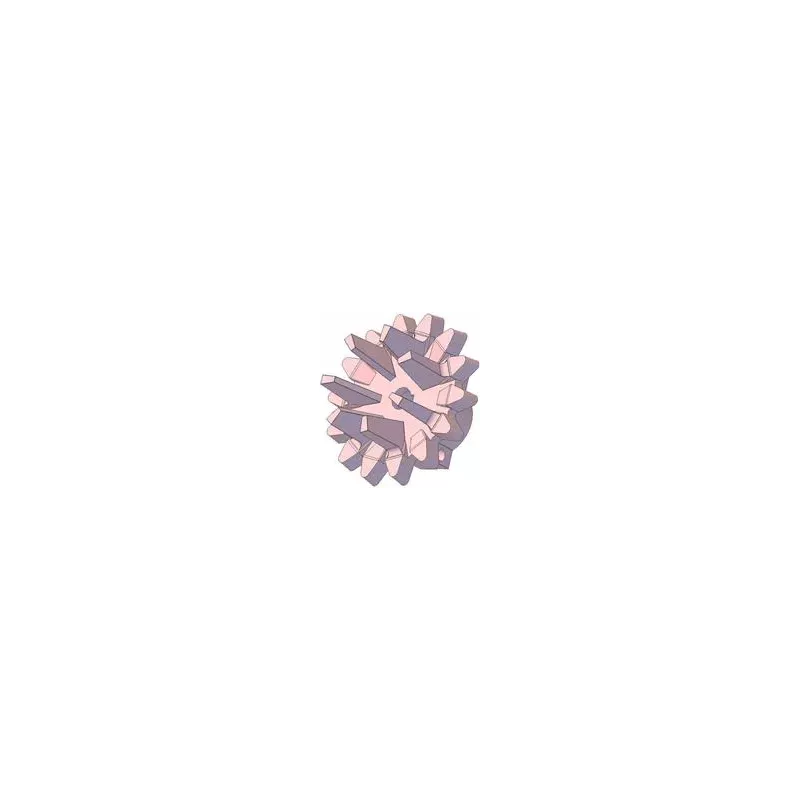

Roller no. 153 – cast iron drive roller Ø180 mm, pitch 33 mm

finger roller | cast iron | pitch 33 mm

Part number KIJ Original reference number
180-018-000-025-000 (numer-153)

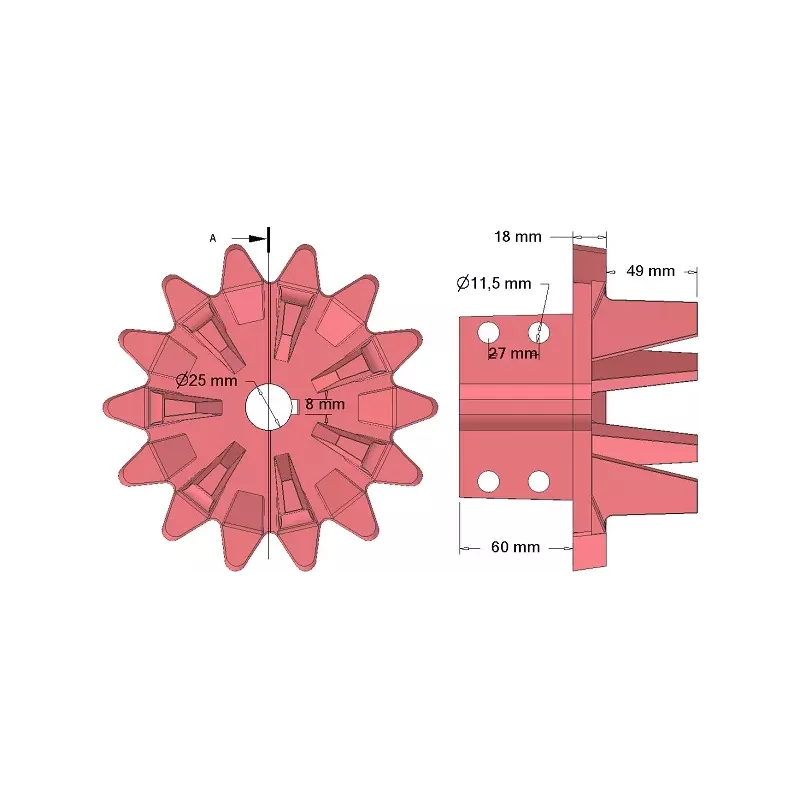

track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 153 is a cast iron drive roller with a tread diameter of 180 mm and a pitch of 33 mm, made by KiJ. It drives the conveyor web, transmitting drive from the shaft to the web.

Technical specifications

Part manufacturerKiJ
Machine make
Machine model
Part typedrive roller
Materialcast iron
Pitch33 mm
Tread diameter180 mm
Tread width18 mm
Bore diameter25 mm

Identification numbers

KiJ numbers / variants180-018-000-025-000 (numer-153)
OEM reference numbers

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
