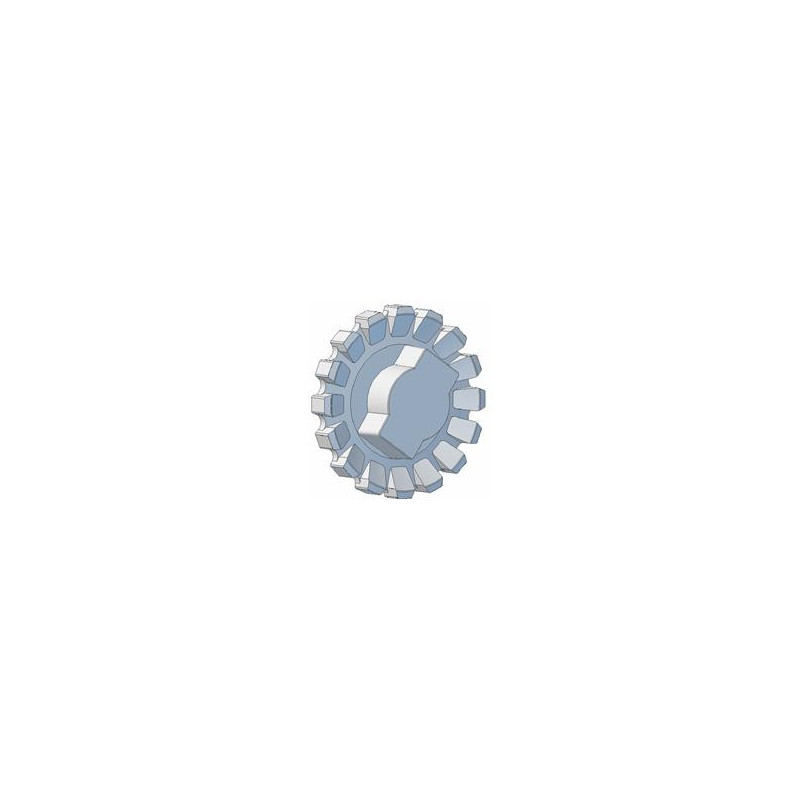

Roller no. 181 – cast iron drive roller Ø210 mm, pitch 36/40 mm

Drive roller | cast iron | pitch 36/40 mm

Part number KIJ Original reference number
210-087-000-050-000 (numer-181)

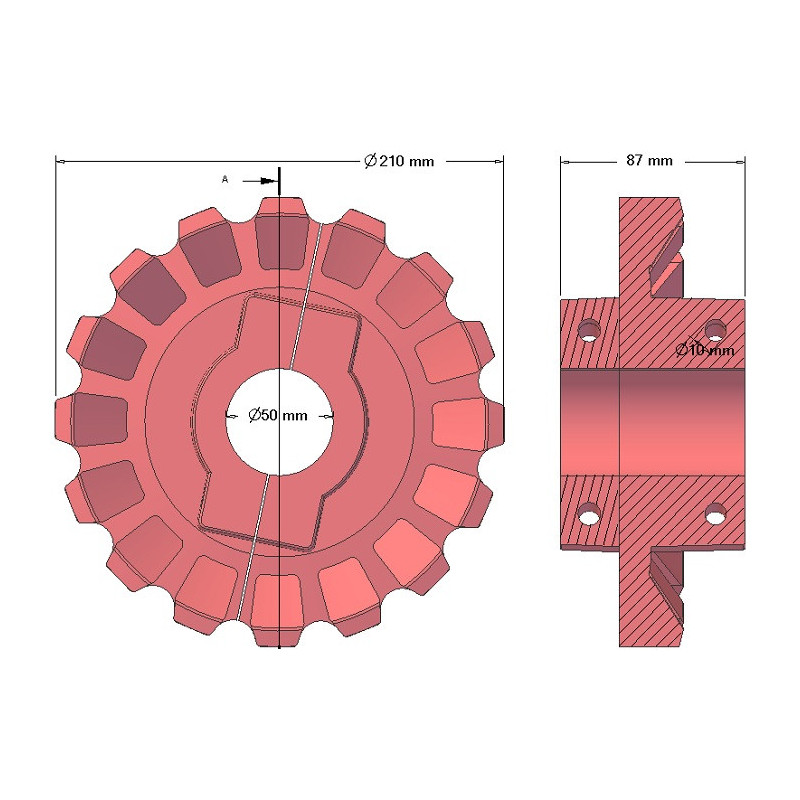

track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 181 is a cast iron drive roller with a tread diameter of 210 mm and a pitch of 36/40 mm, made by KiJ. It drives the conveyor web, transmitting drive from the shaft to the web.

Technical specifications

Part manufacturerKiJ
Machine make
Machine model
Part typedrive roller
Materialcast iron
Pitch36/40 mm
Tread diameter210 mm
Tread width87 mm
Bore diameter50 mm

Identification numbers

KiJ numbers / variants210-087-000-050-000 (numer-181)
OEM reference numbers

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
