Roller no. 78 – cast iron drive roller Ø170 mm, pitch 44 mm, for Bolko Z-643 potato harvester | made by KiJ
search
  • Roller no. 78 – cast iron drive roller Ø170 mm, pitch 44 mm, for Bolko Z-643 potato harvester | made by KiJ

Roller no. 78 – cast iron drive roller Ø170 mm, pitch 44 mm, for Bolko Z-643 potato harvester

finger roller | cast iron | pitch 44 mm

Part number KIJ Original reference number
170-065-210-065-000 (numer-78) 5643-380-024

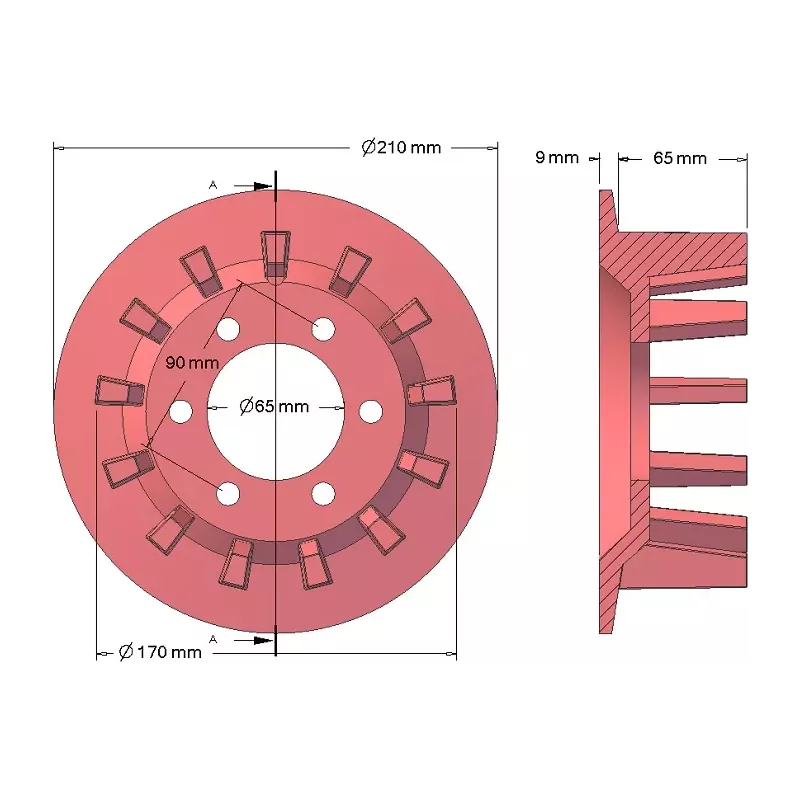

track diam. - track width - collar diam. - hole diam. - screw diam.

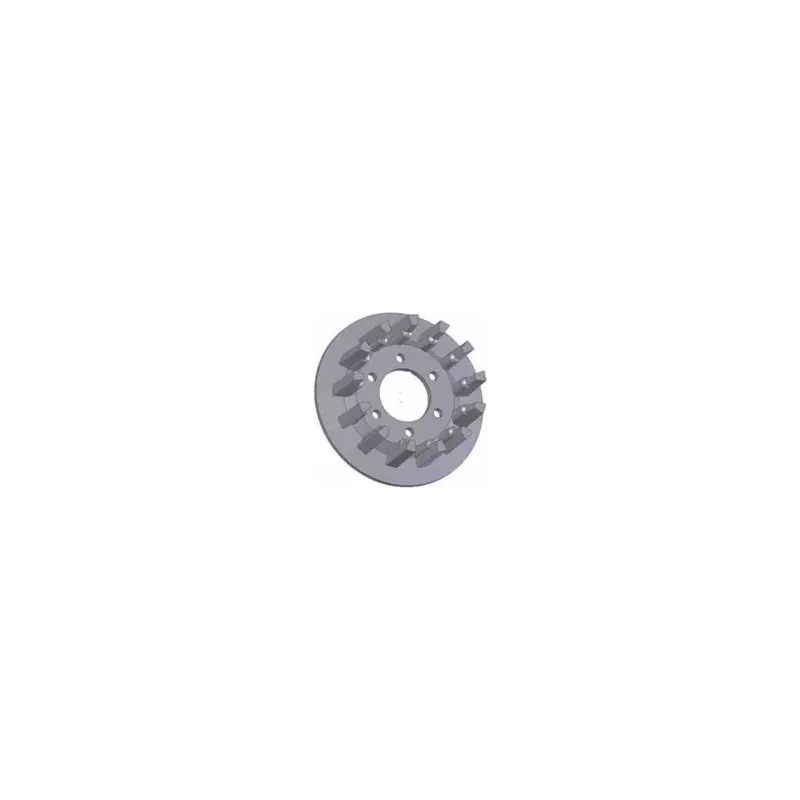

Roller no. 78 is a cast iron drive roller with a tread diameter of 170 mm and a pitch of 44 mm, made by KiJ for the Bolko Z-643 potato harvester. It drives the conveyor web, transmitting drive from the shaft to the web.

Technical specifications

Part manufacturerKiJ
Machine makeBolko
Machine modelZ-643
Part typedrive roller
Materialcast iron
Pitch44 mm
Tread diameter170 mm
Tread width65 mm
Flange diameter210 mm
Bore diameter65 mm

Identification numbers

KiJ numbers / variants170-065-210-065-000 (numer-78), 5643-380-024
OEM reference numbers (Bolko)

Application

  • Bolko Z-643 – potato harvester

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

Other parts

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
