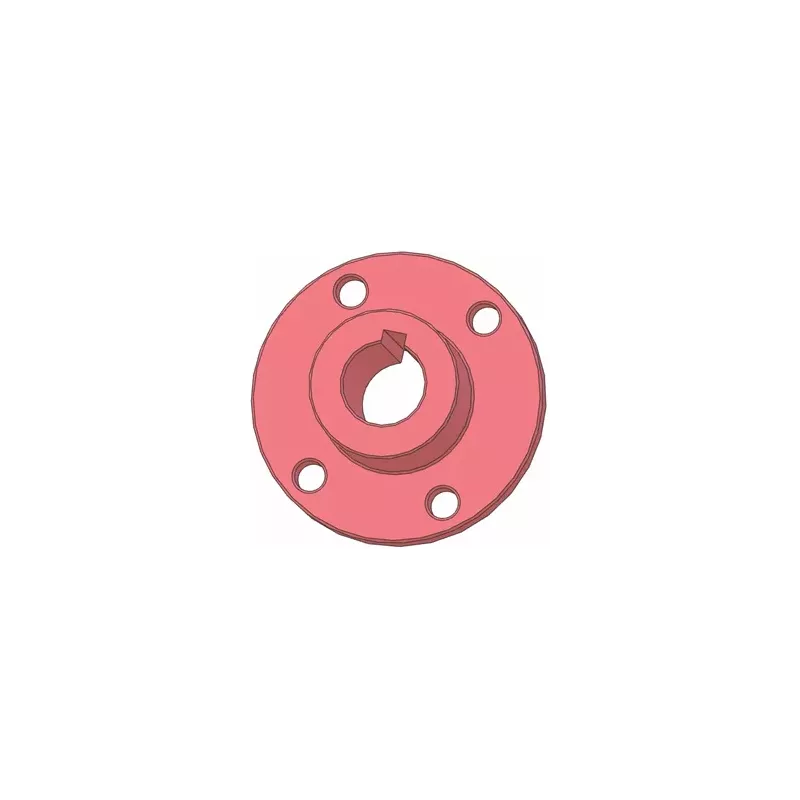

Roller no. 196a – cast iron roller hub Ø70 mm for Wuhlmaus machines
split roller hub to the roll 196 | cast iron
| Part number KIJ | Original reference number | |
|---|---|---|
| 070-012-126-035-000 (numer-196a) |
Add to Quote
|
|

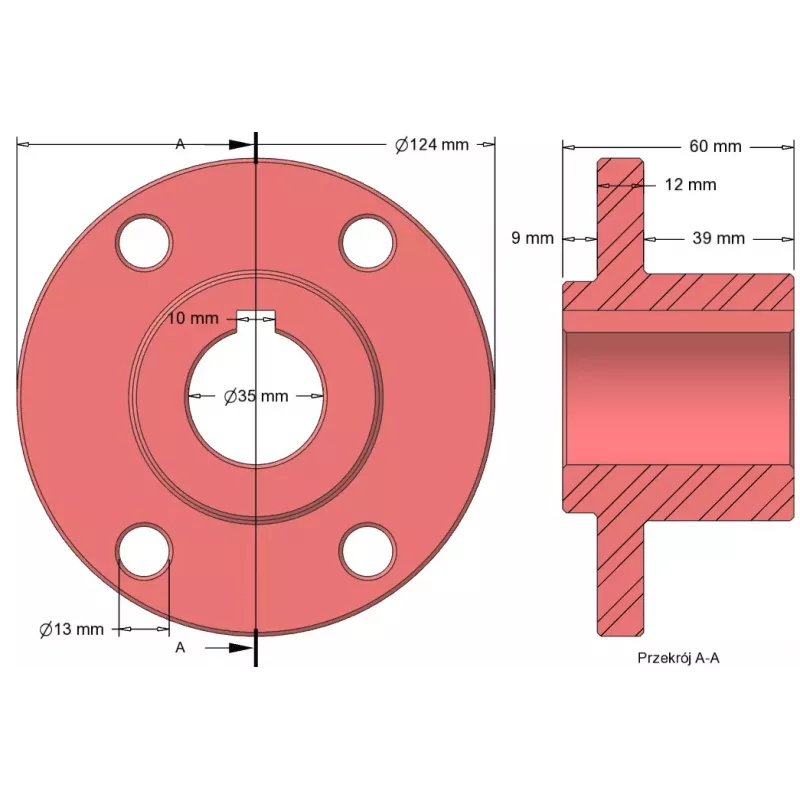

| track diam. - track width - collar diam. - hole diam. - screw diam. | ||
Roller no. 196a is a cast iron roller hub with a diameter of 70 mm, made by KiJ and used in Wuhlmaus machines.
Technical specifications
| Part manufacturer | KiJ |
| Machine make | Wuhlmaus |
| Machine model | |
| Part type | roller hub |
| Material | cast iron |
| Outer diameter | 70 mm |
| Width | 12 mm |
| Flange diameter | 126 mm |
| Bore diameter | 35 mm |
Identification numbers
| KiJ numbers / variants | 070-012-126-035-000 (numer-196a) |
| OEM reference numbers (Wuhlmaus) |
Application
- Wuhlmaus machines
How to choose the right part
Check the OEM number in the machine's parts catalogue or measure the part using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.
Other parts
split roller hub to the roll 196 | cast iron
The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
