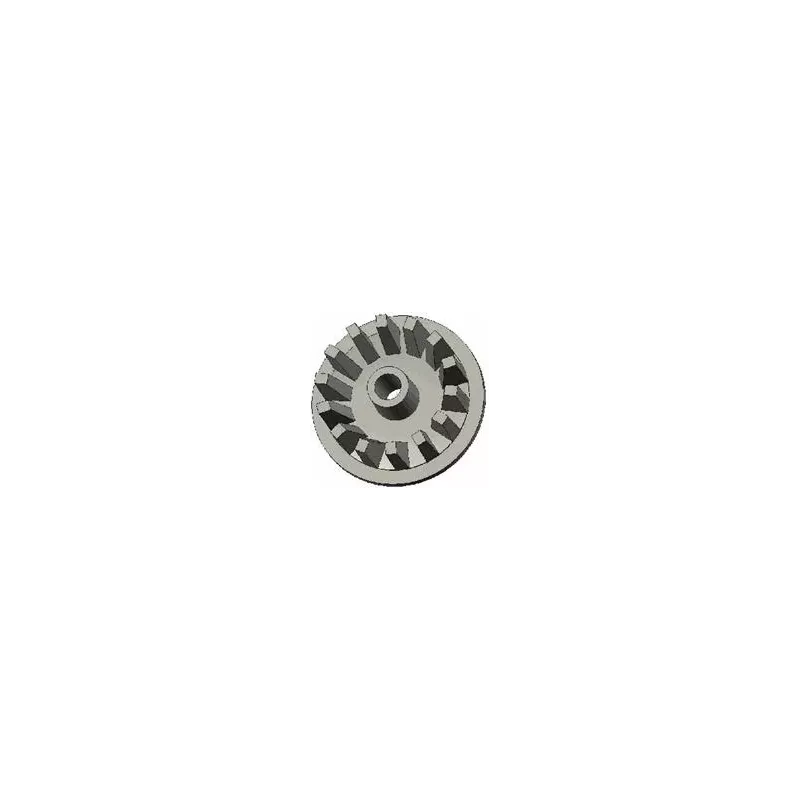

Roller no. 76 – cast iron drive roller Ø158 mm
finger roller | cast iron | pitch 38-40 mm
| Part number KIJ | Original reference number | |
|---|---|---|
| 158-062-190-030-000 (numer-76) |
Add to Quote
|
|

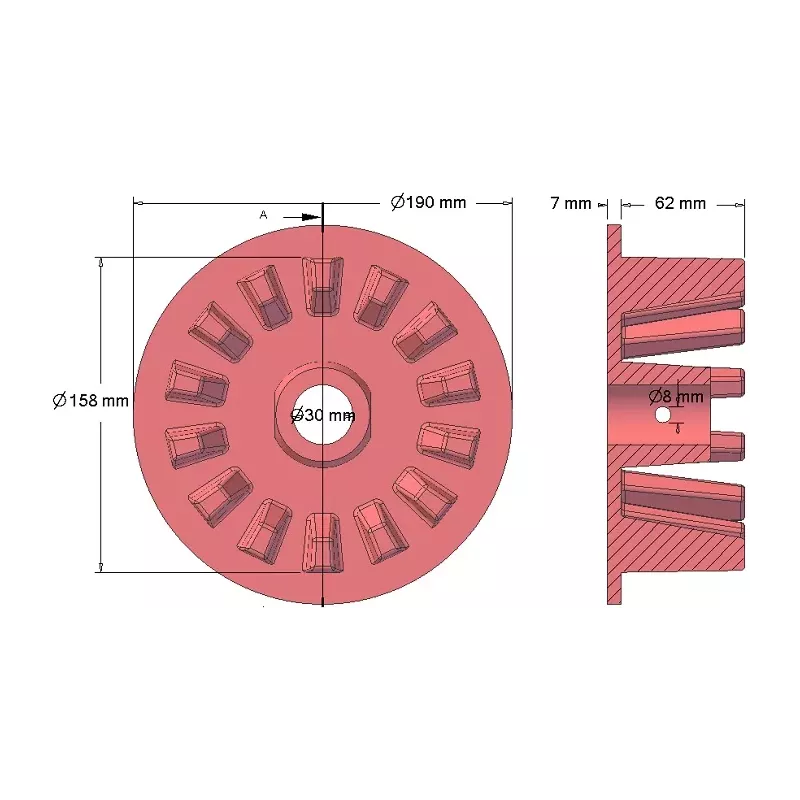

| track diam. - track width - collar diam. - hole diam. - screw diam. | ||
Roller no. 76 is a cast iron drive roller with a tread diameter of 158 mm, made by KiJ. It drives the conveyor web, transmitting drive from the shaft to the web.
Technical specifications
| Part manufacturer | KiJ |
| Machine make | |
| Machine model | |
| Part type | drive roller |
| Material | cast iron |
| Tread diameter | 158 mm |
| Tread width | 62 mm |
| Flange diameter | 190 mm |
| Bore diameter | 30 mm |
Identification numbers
| KiJ numbers / variants | 158-062-190-030-000 (numer-76) |
| OEM reference numbers |
How to choose the right roller
Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.
finger roller | cast iron | pitch 38-40 mm
The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
