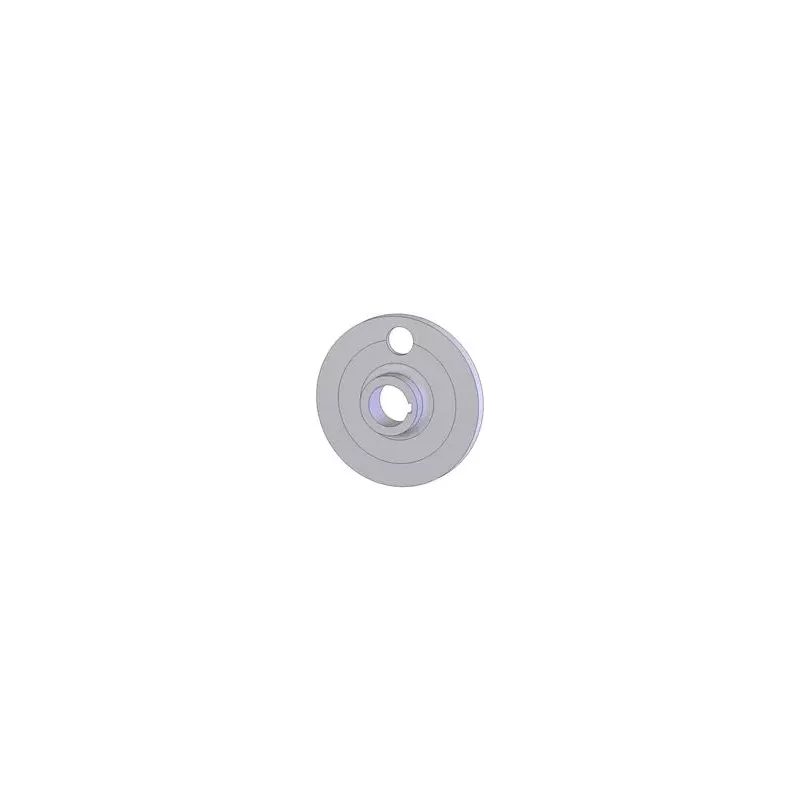

Roller no. 120 – cast iron return roller Ø204 mm for Grimme machines

deflection roller | cast iron

Part number KIJ Original reference number
204-015-000-050-000 (numer-120) 006.00538

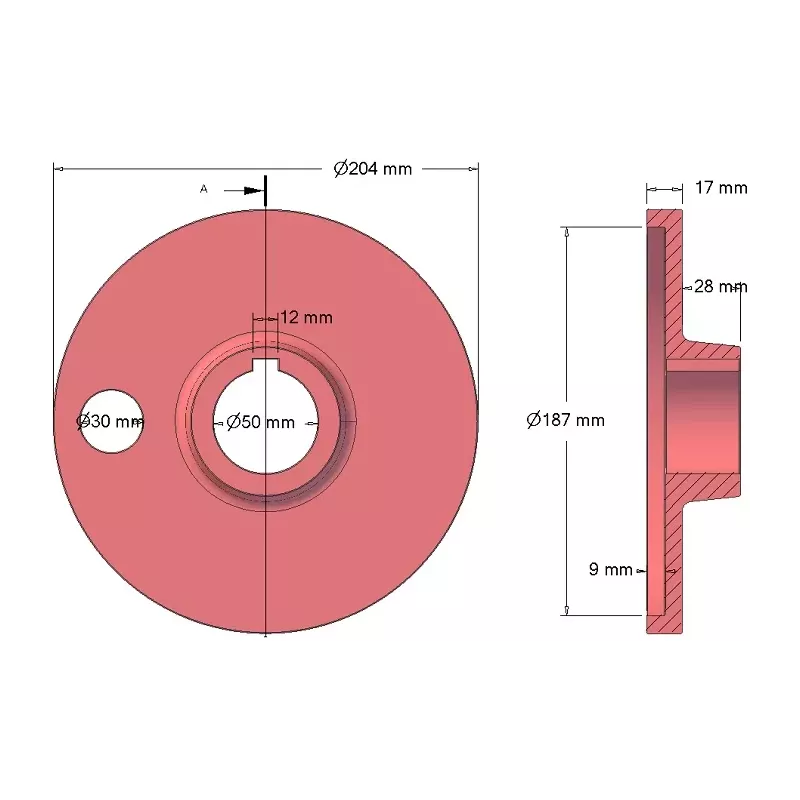

track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 120 is a cast iron return roller with a tread diameter of 204 mm, made by KiJ to fit Grimme machines, OEM no. 006.00538. It runs at the turning point of the conveyor web, reversing its direction of travel.

Technical specifications

Part manufacturerKiJ
Machine makeGrimme
Machine model
Part typereturn roller
Materialcast iron
Tread diameter204 mm
Tread width15 mm
Bore diameter50 mm

Identification numbers

KiJ numbers / variants204-015-000-050-000 (numer-120)
OEM reference numbers (Grimme)006.00538

Application

  • Grimme machines – match by OEM no. 006.00538

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

Other parts

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
