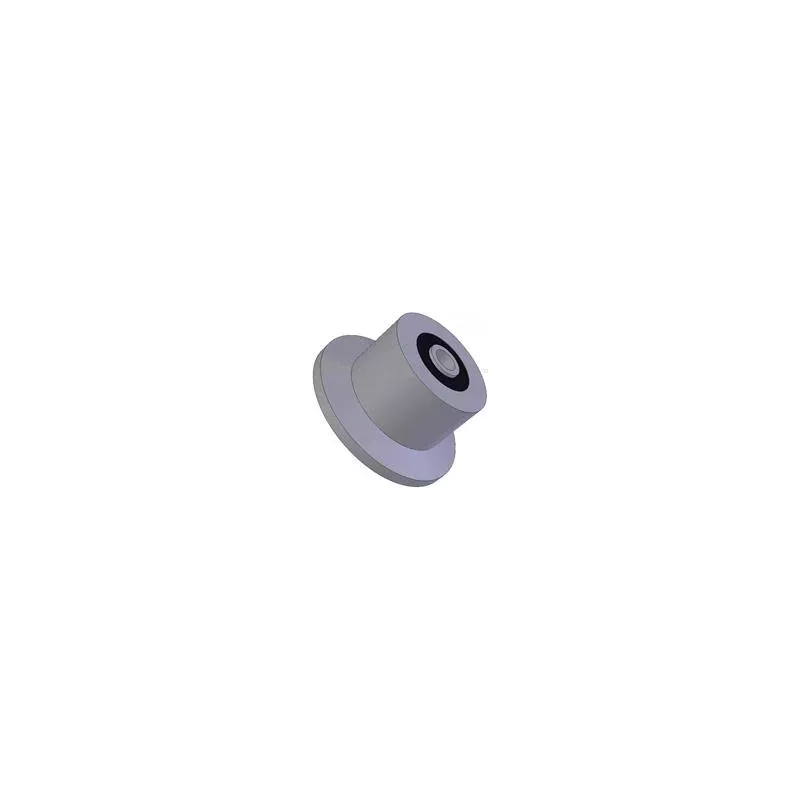

Roller no. 59 – steel return roller Ø80 mm for Reekie machines

deflection roller | steel

Part number KIJ Original reference number
080-046-120-017-000 (numer-59) RSS1138

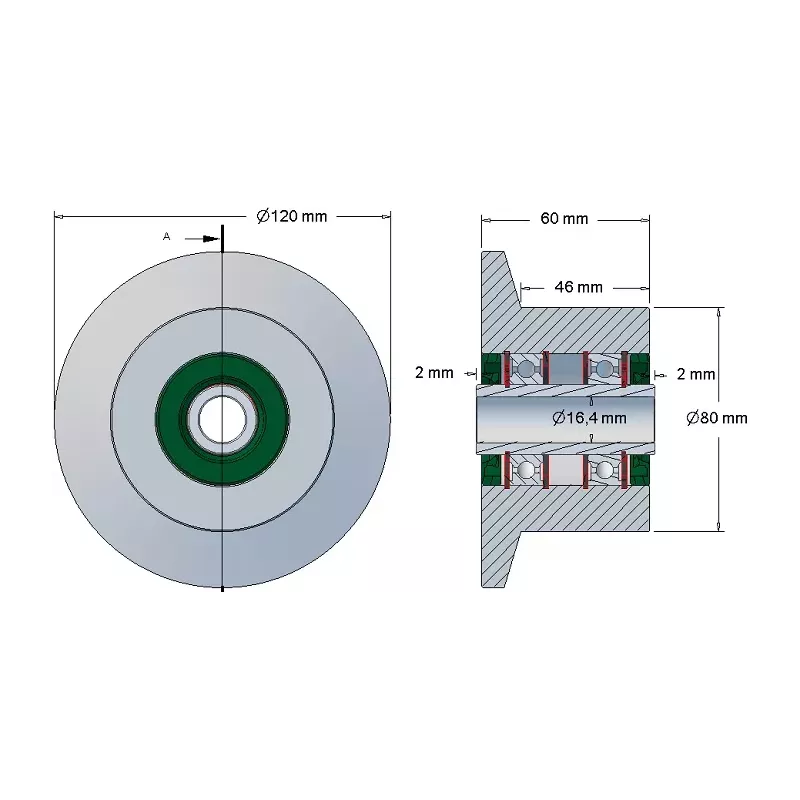

track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 59 is a steel return roller with a tread diameter of 80 mm, made by KiJ to fit Reekie machines, OEM no. RSS1138. It runs at the turning point of the conveyor web, reversing its direction of travel.

Technical specifications

Part manufacturerKiJ
Machine makeReekie
Machine model
Part typereturn roller
Materialsteel
Tread diameter80 mm
Tread width46 mm
Flange diameter120 mm
Bore diameter17 mm

Identification numbers

KiJ numbers / variants080-046-120-017-000 (numer-59)
OEM reference numbers (Reekie)RSS1138

Application

  • Reekie machines – match by OEM no. RSS1138

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
