Roller no. 56 – cast iron return roller Ø120 mm, pitch 40 mm, for Stoll machines

deflection roller | cast iron | pitch 40 mm

Part number KIJ Original reference number
120-060-140-000-020 (numer-56) 1507970, 1507980

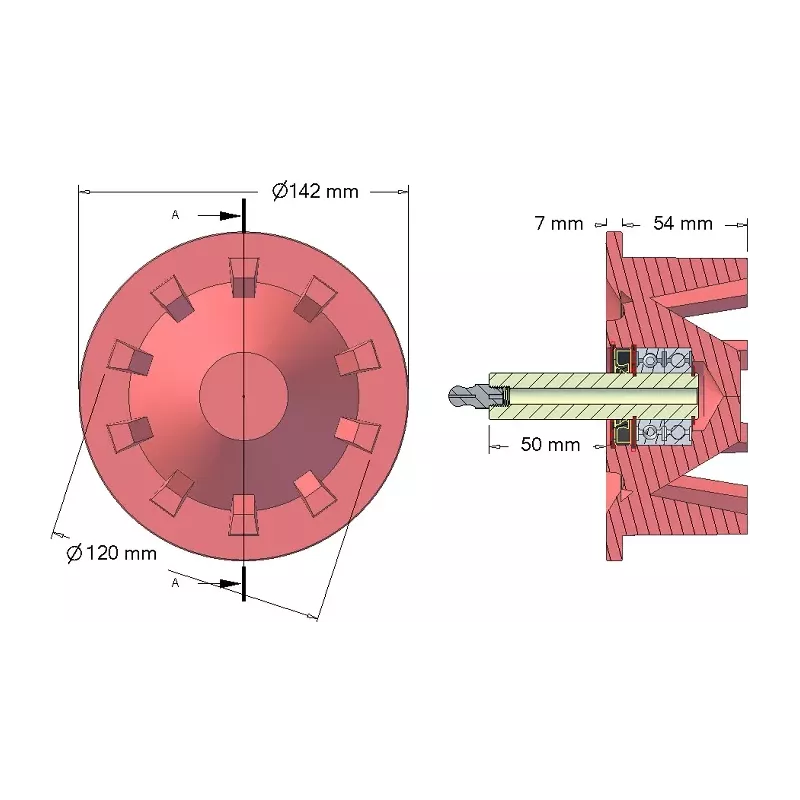

track diam. - track width - collar diam. - hole diam. - screw diam.

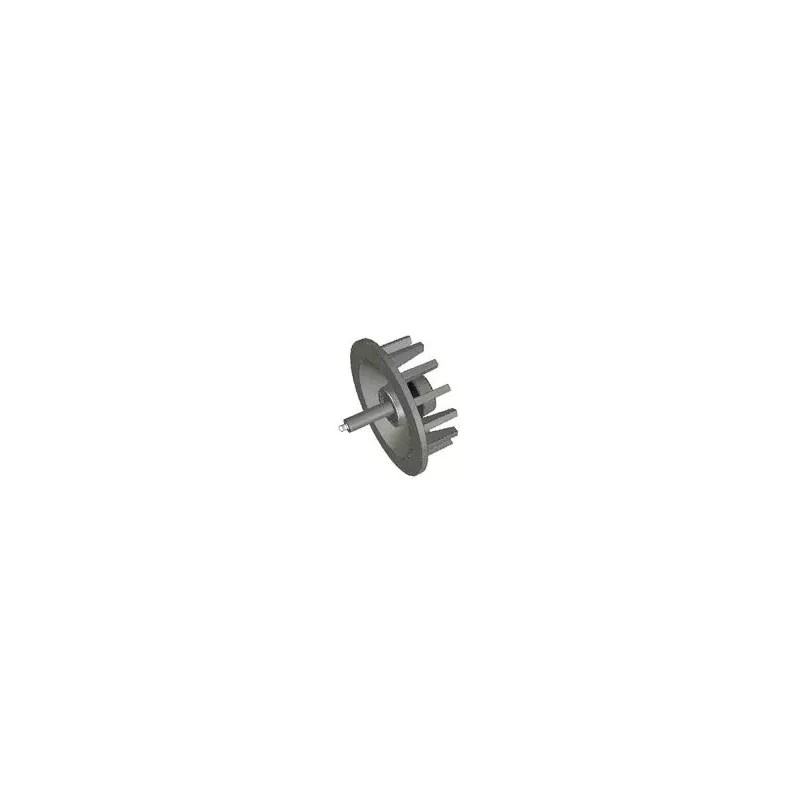

Roller no. 56 is a cast iron return roller with a tread diameter of 120 mm and a pitch of 40 mm, made by KiJ to fit Stoll machines, OEM nos. 1507970, 1507980. It runs at the turning point of the conveyor web, reversing its direction of travel.

Technical specifications

Part manufacturerKiJ
Machine makeStoll
Machine model
Part typereturn roller
Materialcast iron
Pitch40 mm
Tread diameter120 mm
Tread width60 mm
Flange diameter140 mm
Axle diameter20 mm

Identification numbers

KiJ numbers / variants120-060-140-000-020 (numer-56)
OEM reference numbers (Stoll)1507970, 1507980

Application

  • Stoll machines – match by OEM no. 1507970

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
