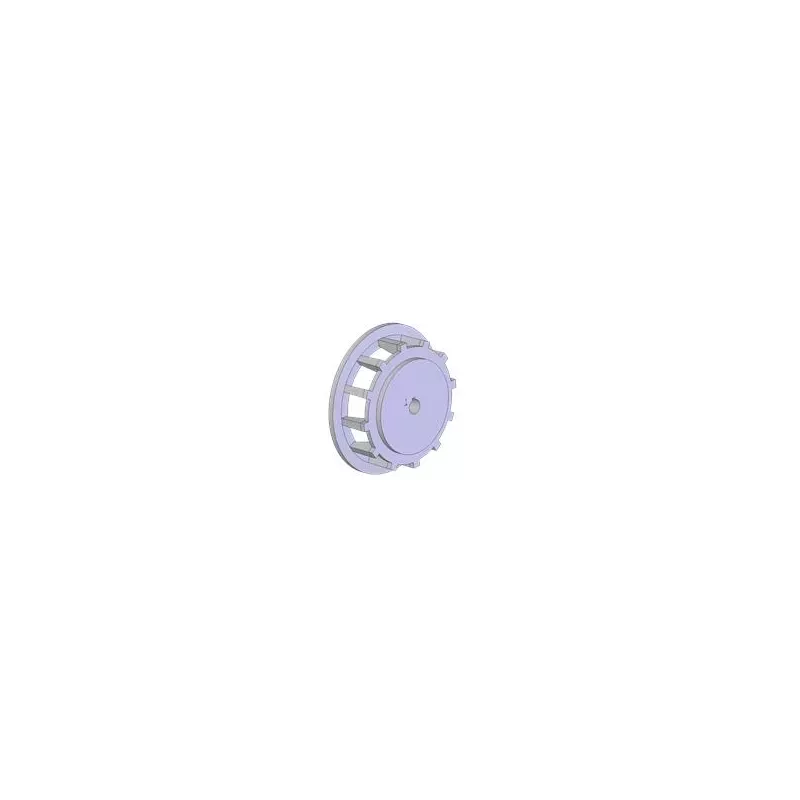

Roller no. 171 – cast iron drive roller Ø258 mm, pitch 35 mm, for Grimme machines

finger roller | cast iron | pitch 35 mm

Part number KIJ Original reference number
258-052-298-030-000 (numer-171) 006.00537
track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 171 is a cast iron drive roller with a tread diameter of 258 mm and a pitch of 35 mm, made by KiJ to fit Grimme machines, OEM no. 006.00537. It drives the conveyor web, transmitting drive from the shaft to the web.

Technical specifications

Part manufacturerKiJ
Machine makeGrimme
Machine model
Part typedrive roller
Materialcast iron
Pitch35 mm
Tread diameter258 mm
Tread width52 mm
Flange diameter298 mm
Bore diameter30 mm

Identification numbers

KiJ numbers / variants258-052-298-030-000 (numer-171)
OEM reference numbers (Grimme)006.00537

Application

  • Grimme machines – match by OEM no. 006.00537

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
