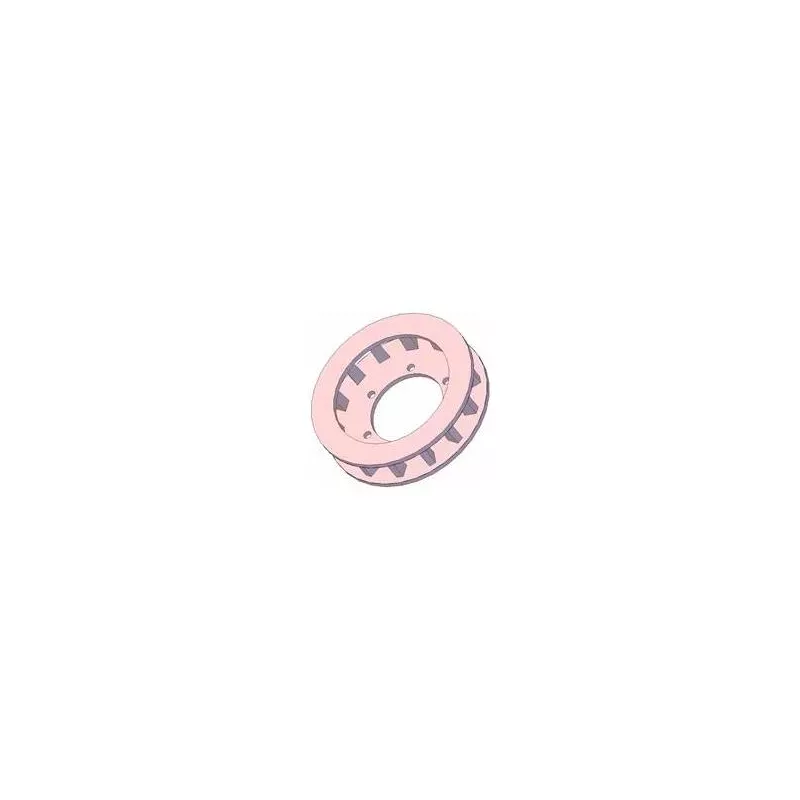

Roller no. 206 – cast iron drive roller Ø205 mm, pitch 50 mm, for Pomac machines

finger roller | cast iron | pitch 50 mm

Part number KIJ Original reference number
205-039-222-100-000 (numer-206)

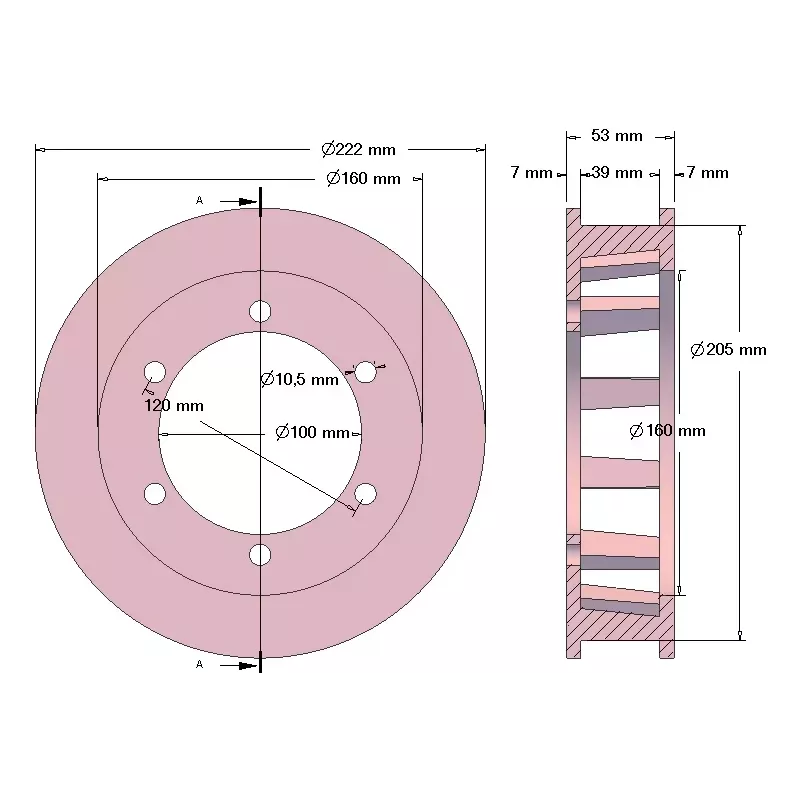

track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 206 is a cast iron drive roller with a tread diameter of 205 mm and a pitch of 50 mm, made by KiJ and used in Pomac machines. It drives the conveyor web, transmitting drive from the shaft to the web.

Technical specifications

Part manufacturerKiJ
Machine makePomac
Machine model
Part typedrive roller
Materialcast iron
Pitch50 mm
Tread diameter205 mm
Tread width39 mm
Flange diameter222 mm
Bore diameter100 mm

Identification numbers

KiJ numbers / variants205-039-222-100-000 (numer-206)
OEM reference numbers (Pomac)

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
