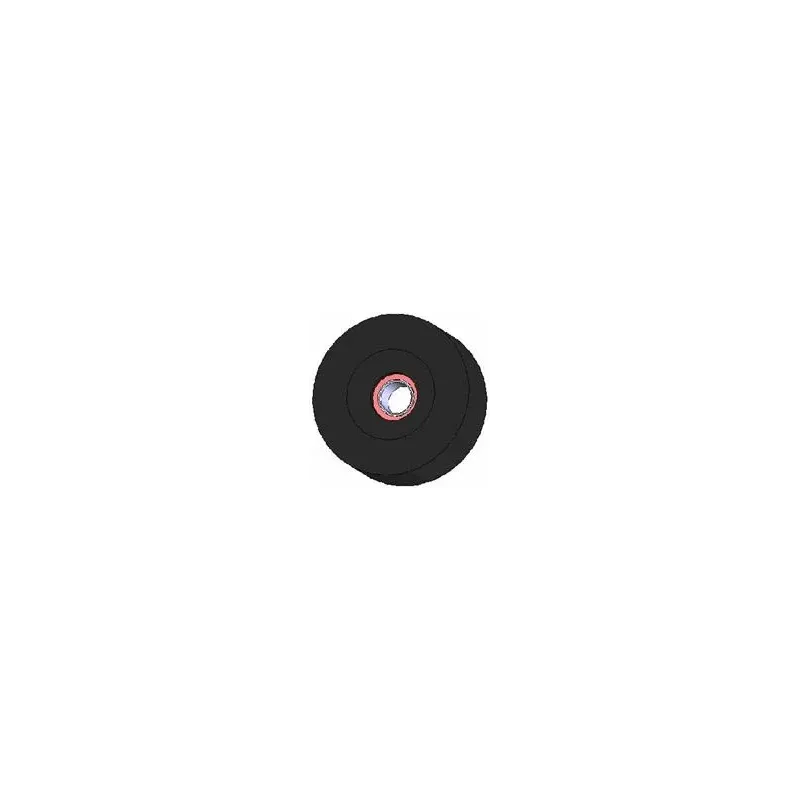

Roller no. 18 – rubber support roller Ø64 mm for Grimme machines

support roller | rubber

Part number KIJ Original reference number
064-021-000-012-000 (numer-18) 088.00243, 200.14285, 200.17208, 088.00125, 088.00259, 088.00030

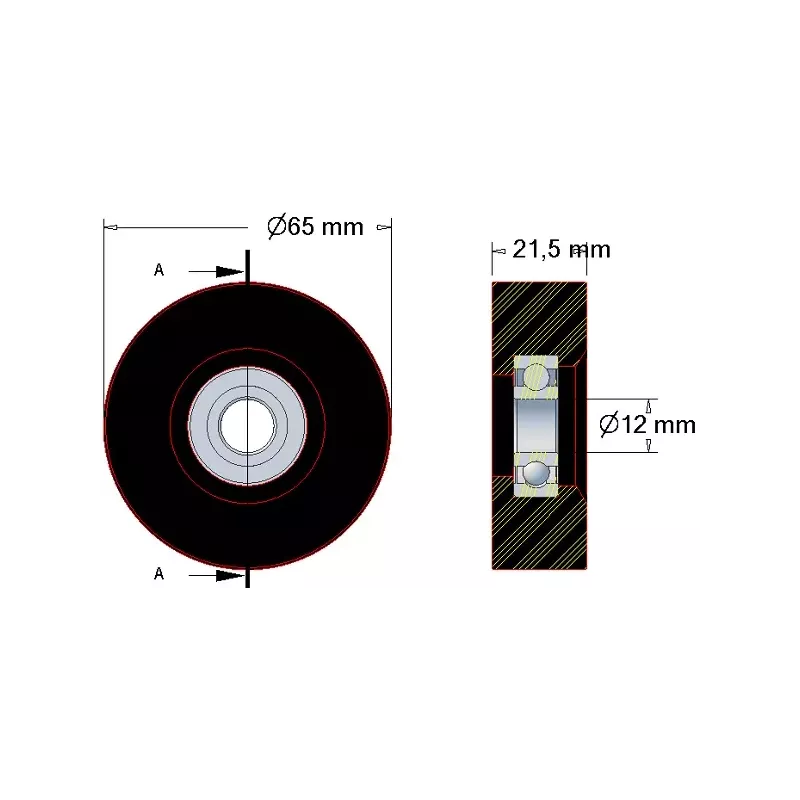

track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 18 is a rubber support roller with a tread diameter of 64 mm, made by KiJ to fit Grimme machines, OEM nos. 088.00243, 200.14285, 200.17208, 088.00125, 088.00259, 088.0003. It supports the conveyor web and keeps it running on the correct track.

Technical specifications

Part manufacturerKiJ
Machine makeGrimme
Machine model
Part typesupport roller
Materialrubber
Tread diameter64 mm
Tread width21 mm
Bore diameter12 mm

Identification numbers

KiJ numbers / variants064-021-000-012-000 (numer-18)
OEM reference numbers (Grimme)088.00243, 200.14285, 200.17208, 088.00125, 088.00259, 088.0003

Application

  • Grimme machines – match by OEM no. 088.00243

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
