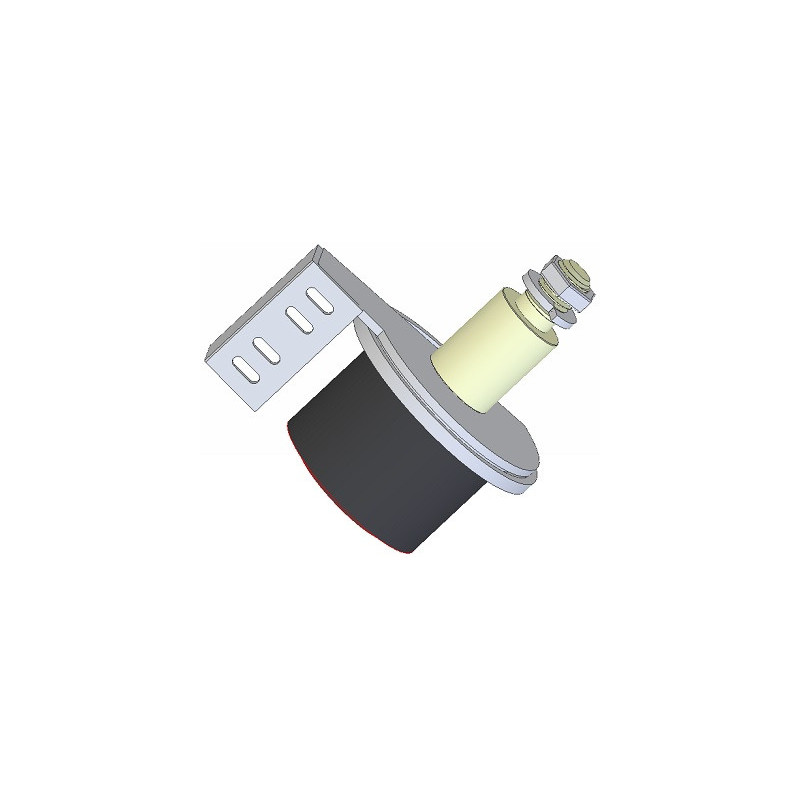

Roller no. 279 – steel and rubber return roller Ø100 mm for Grimme machines

deflection roller | steel-rubber

Part number KIJ Original reference number
100-074-136-000-M24L (numer-279) 200.72138, 076.00759, 100.72138

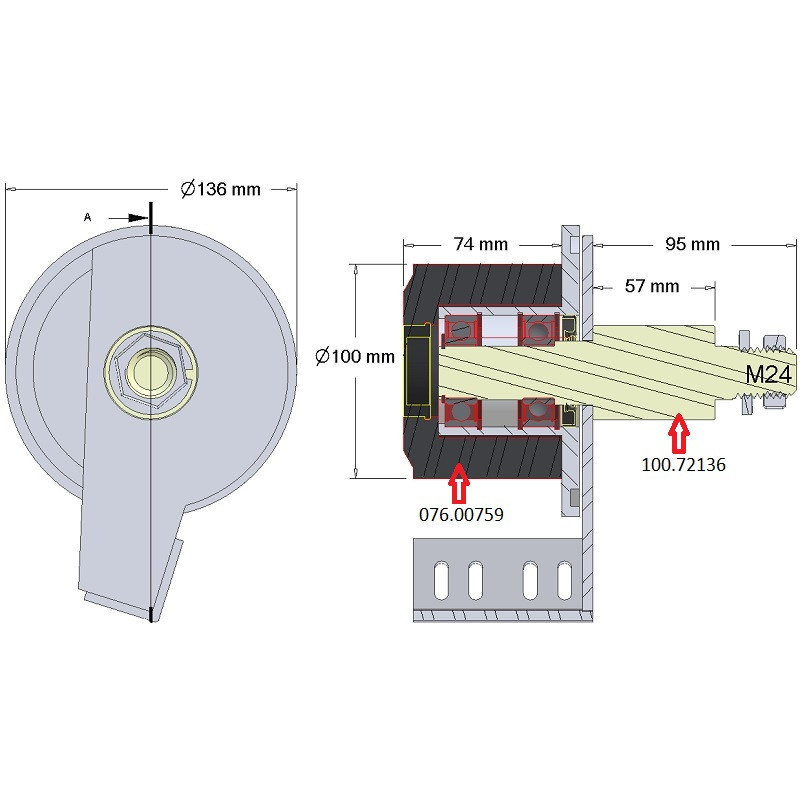

track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 279 is a steel and rubber return roller with a tread diameter of 100 mm, made by KiJ to fit Grimme machines, OEM nos. 200.72138, 076.00759, 100.72138. It runs at the turning point of the conveyor web, reversing its direction of travel.

Technical specifications

Part manufacturerKiJ
Machine makeGrimme
Machine model
Part typereturn roller
Materialsteel and rubber
Tread diameter100 mm
Tread width74 mm
Flange diameter136 mm
Threaded axleM24 (version L)

Identification numbers

KiJ numbers / variants100-074-136-000-M24L (numer-279)
OEM reference numbers (Grimme)200.72138, 076.00759, 100.72138

Application

  • Grimme machines – match by OEM no. 200.72138

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
