Roller no. 311a – steel and rubber support roller Ø90 mm for Guaresi machines

support roller | steel-rubber

Part number KIJ Original reference number
090-050-000-000-M16A (numer-311a)

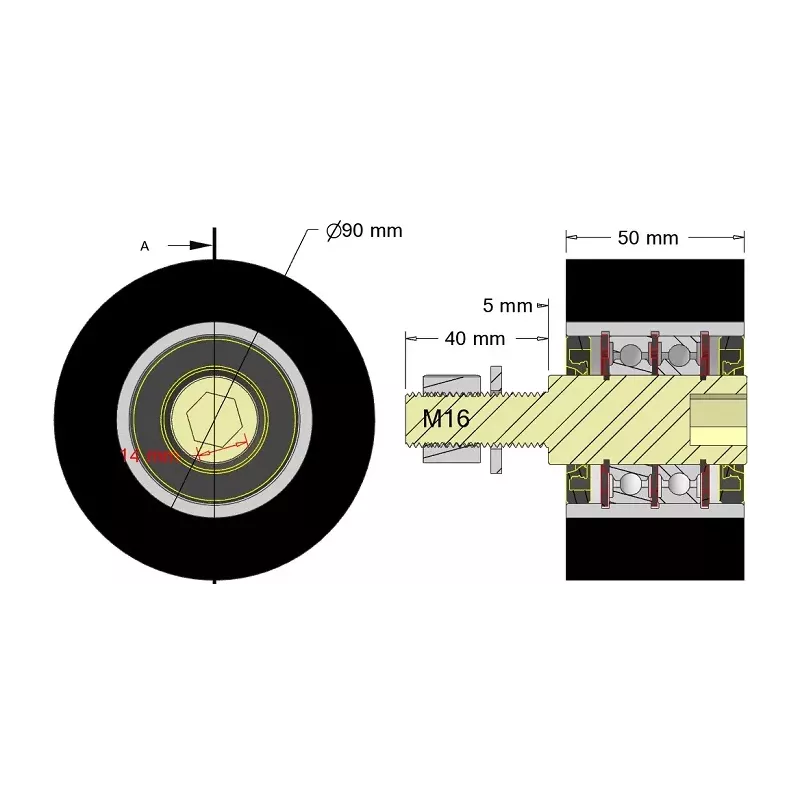

track diam. - track width - collar diam. - hole diam. - screw diam.

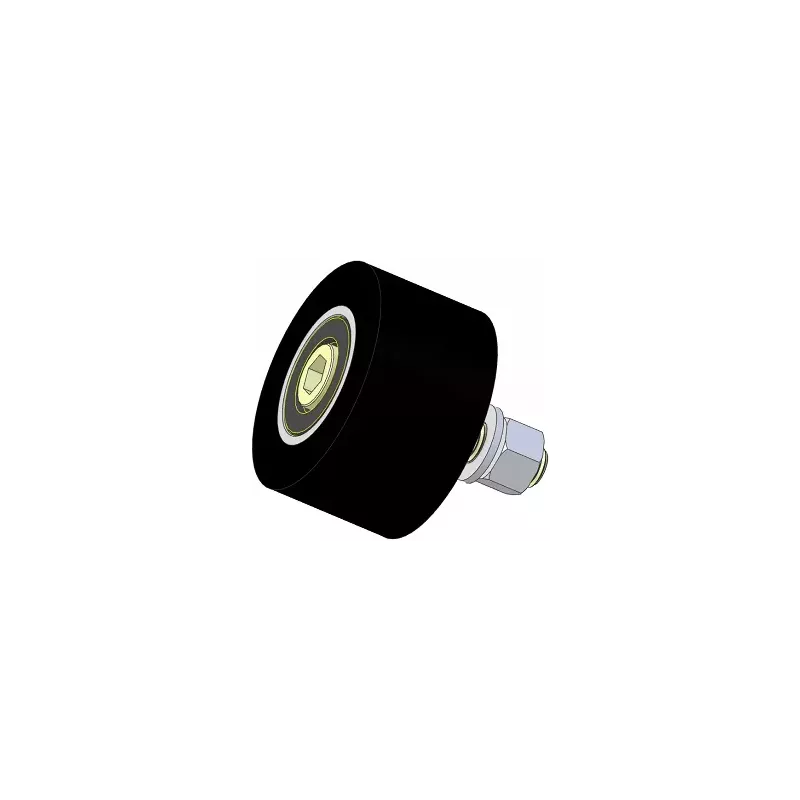

Roller no. 311a is a steel and rubber support roller with a tread diameter of 90 mm, made by KiJ and used in Guaresi machines. It supports the conveyor web and keeps it running on the correct track.

Technical specifications

Part manufacturerKiJ
Machine makeGuaresi
Machine model
Part typesupport roller
Materialsteel and rubber
Tread diameter90 mm
Tread width50 mm
Threaded axleM16 (version A)

Identification numbers

KiJ numbers / variants090-050-000-000-M16A (numer-311a)
OEM reference numbers (Guaresi)

Application

  • Guaresi machines

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
