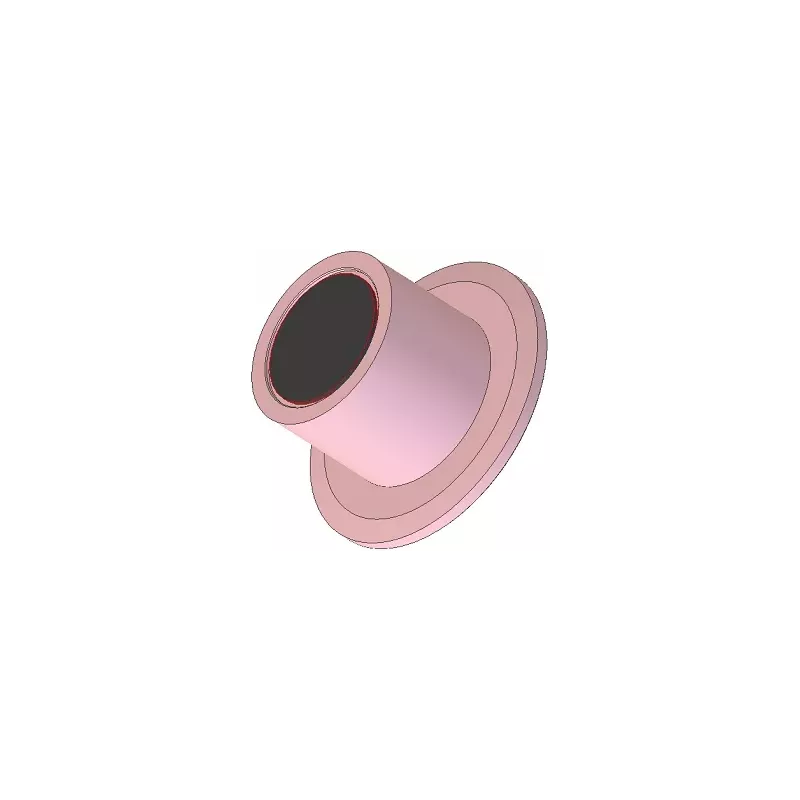

Roller no. 275 – steel support roller Ø80 mm, pitch 64 mm, for Samon machines

support roller | steel

Part number KIJ Original reference number
080-060-130-16,4-000 (numer-275) TL647

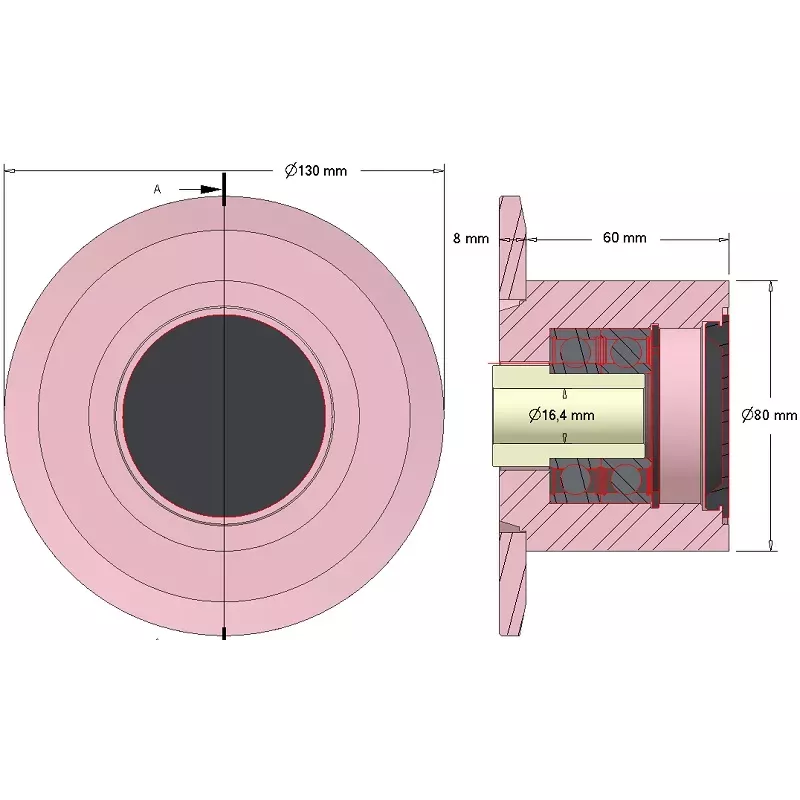

track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 275 is a steel support roller with a tread diameter of 80 mm and a pitch of 64 mm, made by KiJ and used in Samon machines. It supports the conveyor web and keeps it running on the correct track.

Technical specifications

Part manufacturerKiJ
Machine makeSamon
Machine model
Part typesupport roller
Materialsteel
Pitch64 mm
Tread diameter80 mm
Tread width60 mm
Flange diameter130 mm
Bore diameter16,4 mm

Identification numbers

KiJ numbers / variants080-060-130-16,4-000 (numer-275), TL647
OEM reference numbers (Samon)

Application

  • Samon machines

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
