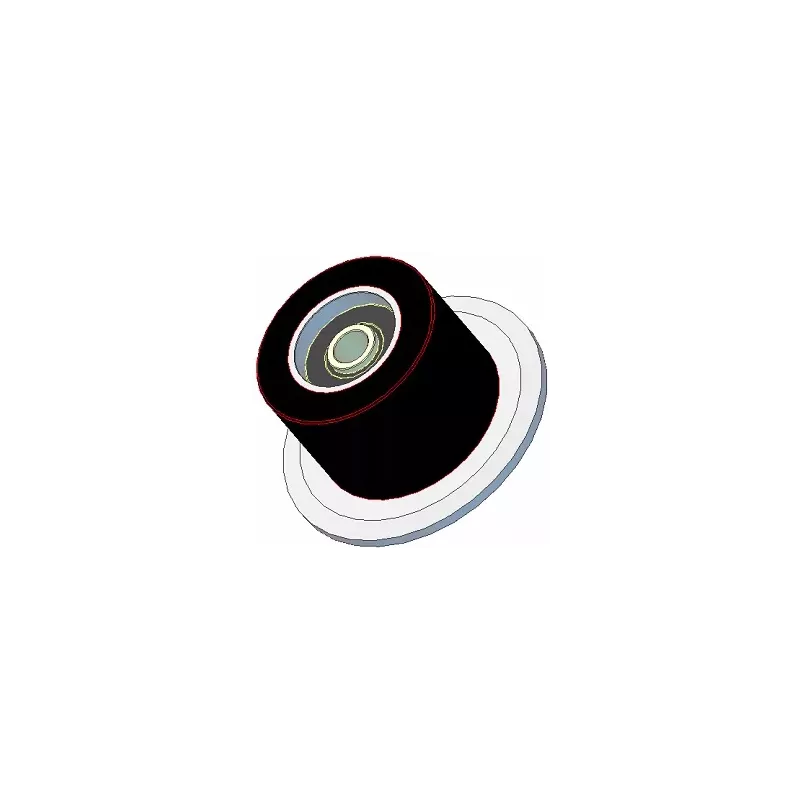

Roller no. 23H – steel and rubber support roller Ø110 mm for Holmer machines

support roller | steel-rubber

Part number KIJ Original reference number
110-076-160-021-000 (numer-23h) 1130020688

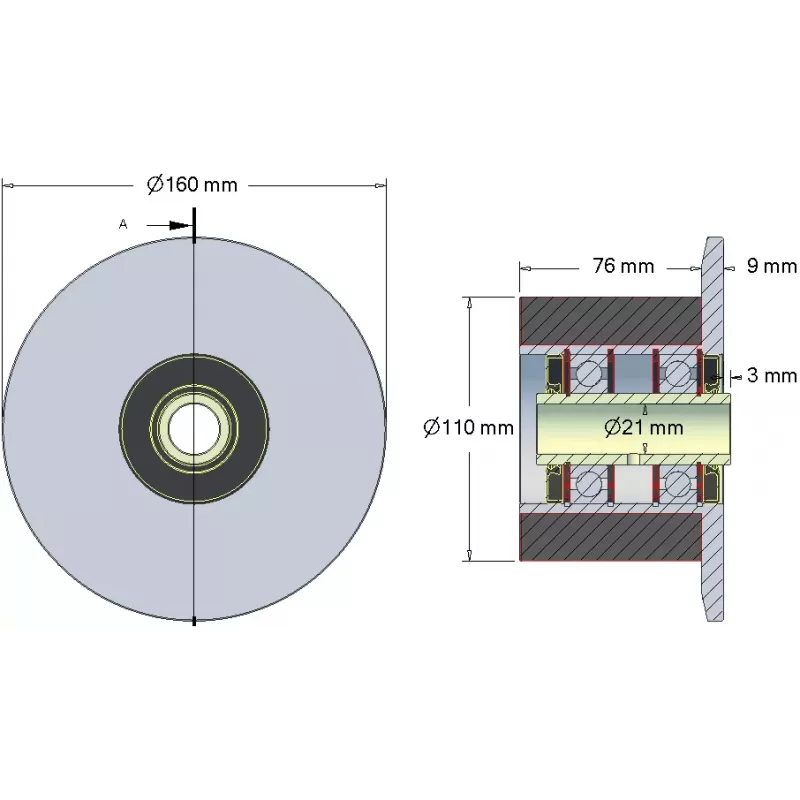

track diam. - track width - collar diam. - hole diam. - screw diam.

Roller no. 23H is a steel and rubber support roller with a tread diameter of 110 mm, made by KiJ to fit Holmer machines, OEM no. 1130020688. It supports the conveyor web and keeps it running on the correct track.

Technical specifications

Part manufacturerKiJ
Machine makeHolmer
Machine model
Part typesupport roller
Materialsteel and rubber
Tread diameter110 mm
Tread width76 mm
Flange diameter160 mm
Bore diameter21 mm

Identification numbers

KiJ numbers / variants110-076-160-021-000 (numer-23h)
OEM reference numbers (Holmer)1130020688

Application

  • Holmer machines – match by OEM no. 1130020688

How to choose the right roller

Check the OEM number in the machine's parts catalogue or measure the roller using the KiJ code: tread diameter – tread width – flange diameter – bore diameter – axle diameter (000 means the element is not present). Include the part number or dimensions in your enquiry.

The catalog numbers used do not indicate the manufacturer. They are intended solely for the correct identification of the application of the respective product.
